- [Isolate Interior from Exterior Air] - THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. Save energy by keeping the conditioned air inside and blocking 90% of heat/cold air, dust, smoke, etc. You still need to turn on your air conditioner, air curtain is not to replace an air conditioner. Fireproof and anti-erosive powder coated metal case, easy to clean slim body.

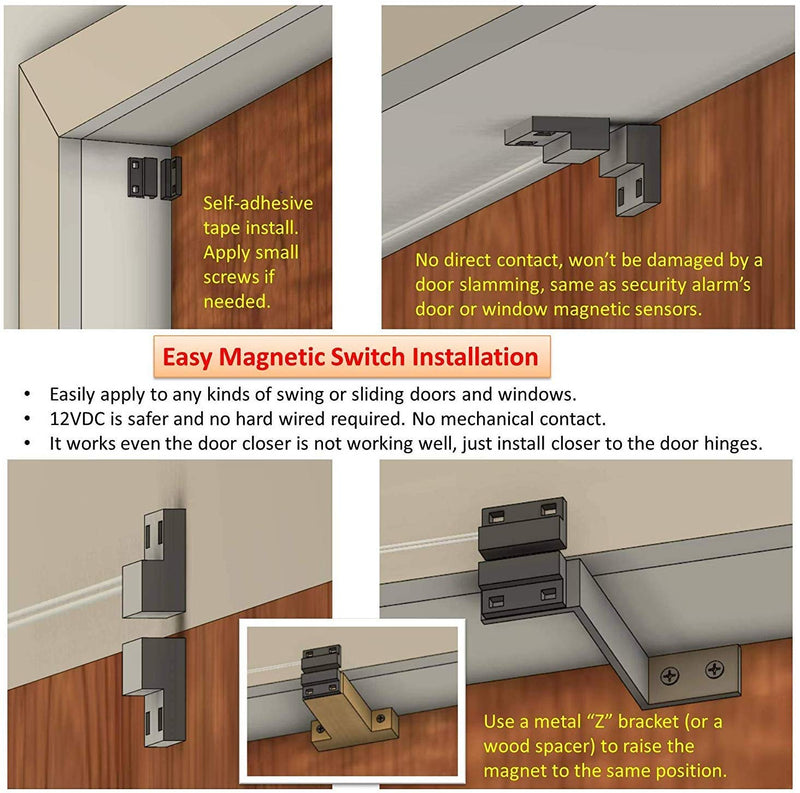

- [Magnetic Switch] - 2 pieces of magnets have no direct contact, won’t be damaged by a door slamming. The magnetic door switch installation is much easier than the traditional mechanical plunger switch. 12VDC is safer and no hard wired required. It works even the door closer is not working well, just install at the closer distance while the door is closed.
- [ETL Sanitation confirms to NSF Standard 37] – ETL Sanitation Listed, 1 speed confirms to NSF STD 37 for food service entranceway to meet Health Department Requirements. 56dB. 120V 60Hz 300W (0.4HP, 3.13A), less power consumption than other industrial air curtains. Adopting the technology of German electrical machinery, it continuously runs for business hours. 1 motor and 2 ABS Fan Wheels.
- [Easy Installation] - Refer to Technical Specification User Manual, installation should be easy. 1) mount the detachable mounting plate securely. 2) hang the air curtain up. 3) install the optional magnetic switch and connect to the dedicated 2 wires. With magnetic switch installed, automatically turn on the air curtain while the door is open.
- [1 Year Warranty, Professional Tech Support] - Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Dimensions: 35-1/2” L x 8-5/8” D x 10-3/8” H. Weight: 33.1 LBS. UL Certified.
Air curtain is Not an air conditioner
Air curtain is a powerful fan that creates an invisible high speed air barrier over the entrance to isolate the interior and exterior air environment and maintain temperature separation. Awoco Air curtains are a huge energy saving device as they help to prevent the conditioned air escape to exterior, blocking the entry of dust, smoke and flying insects.
Why choosing Awoco Air Curtains?
Awoco high quality product reputation and supreme customer service is a guarantee. Free parts, repair or exchange within warranty.
Why magnetic switch is better than plunger switch?
The traditional mechanical plunger micro switch has to be installed accurately to trigger the plunger. It might be damaged easily by a door slamming. 120V directly applied on the micro switch will cause sparks built up.
However, the magnetic switch installation is very easy as connecting to the dedicated 2 wires. Magnetic switch works easily with any kinds of doors and windows, even the door isn’t closed fully.
Where does it serve?
Awoco Air Curtains are widely installed at the entrances.
Office, home, store, drive-thru window, restaurant front doors.
Voltage: 120V AC, 60Hz
Type: Unheated and No Cold Air
Air velocity: High 2559 FPM.
Material: White color powder coated metal
Note: air curtain is not waterproof, not to operate at a moist environment
1x Air curtain with mounting plate attached
1x Magnetic switch
1x User manual
Note: No wall mount screws are included for safety concern.
