Awoco 72" Elegant 2 Speeds 1800 CFM Air Curtain, CE Certified, 120V Unheated with Magnetic Shutoff Delay Swing Doors

AwocoSKU: AWOCO-FM3518-MSD
Price:
$790.00
Shipping Included.
Stock:
In stock

Description

  • [Isolate Interior from Exterior Air] -

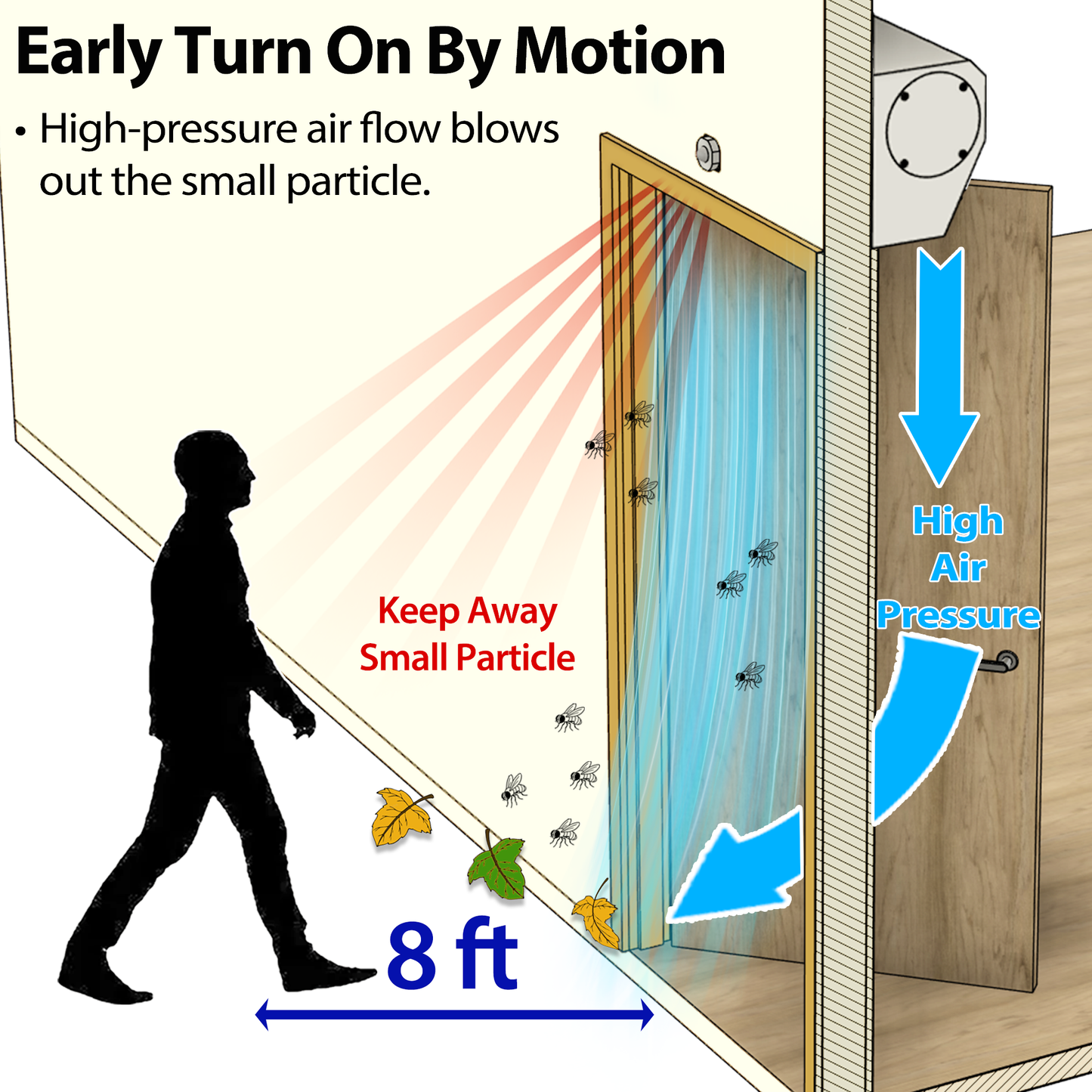

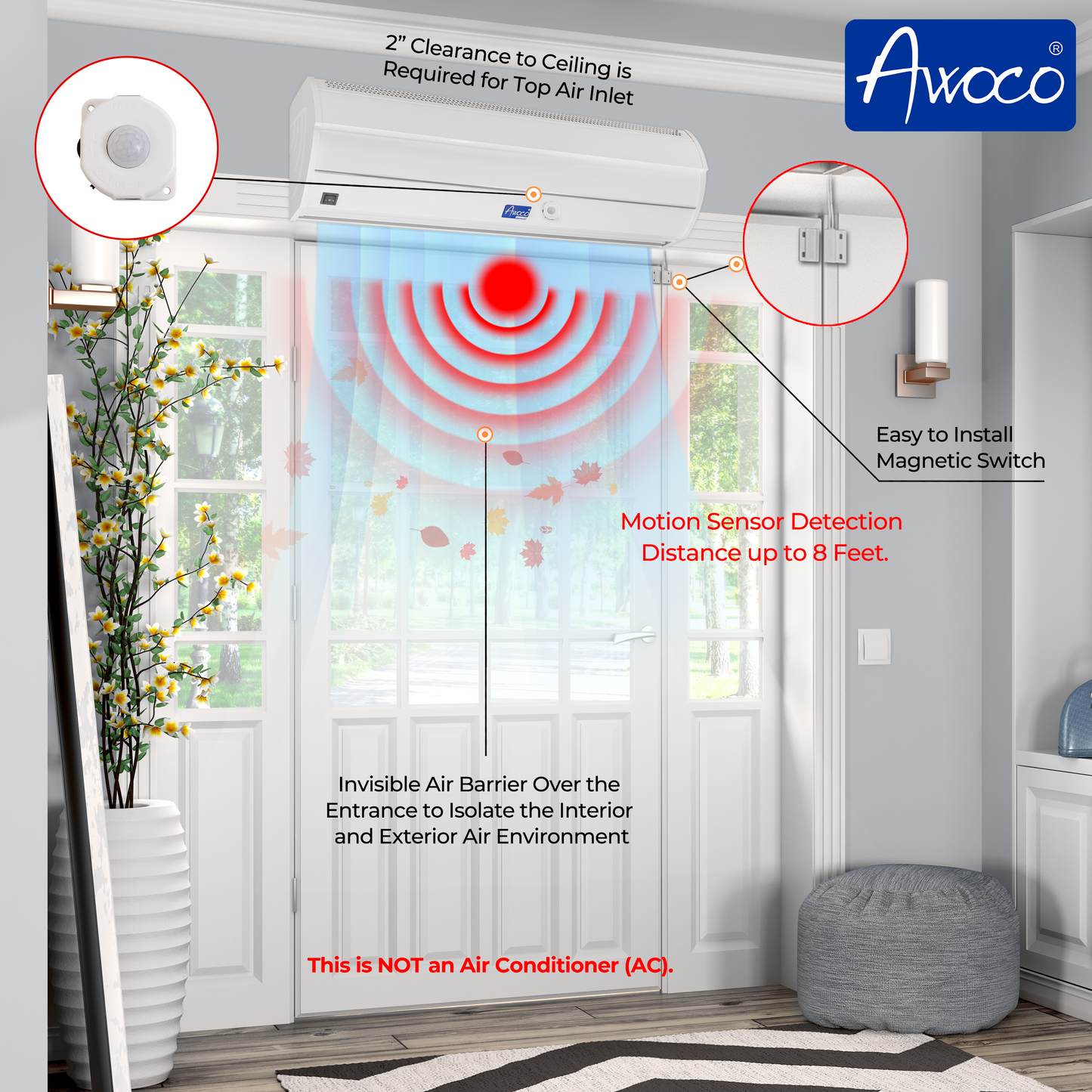

    THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. Air curtain is a powerful fan that forcing a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking 90% of Hot or Cold air, dust, smoke. It could save energy cost by keeping the conditioned air inside.

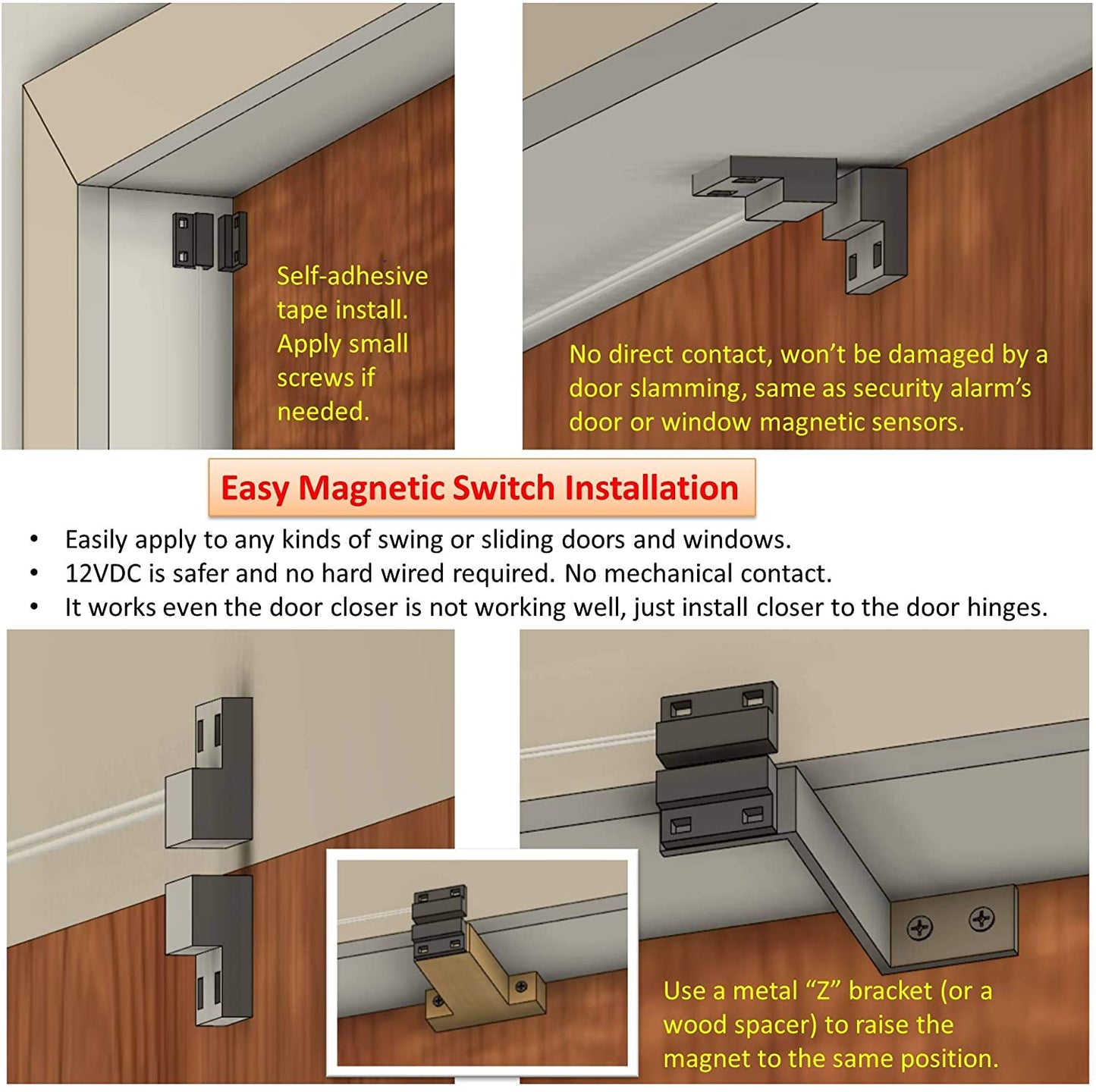

  • [Special Edition for Restaurant Kitchen Aluminum Swing Doors] - Shutoff Delay Magnetic switch: New shutoff delay switch keeps the air curtain on for an additional 2 seconds, allowing enough time for swinging doors to completely close. This air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wired needed on the 12VDC low voltage magnetic switch.
  • [2 Speeds at Lo/Off/Hi switch] - high speed at 1878 CFM, 55dB low speed at 1482 CFM, 52dB. A HI/LO/OFF switch to select High/Low speed. 110V-120V 60Hz. 600W(0.8HP, 6.25A), less power consumption than other industrial air curtains. Adopting the technology of German electrical machinery, it runs smoothly with reduced low noise. Fan Wheel: German electrical machinery design, made of high-tech ABS, powerful wind-force.

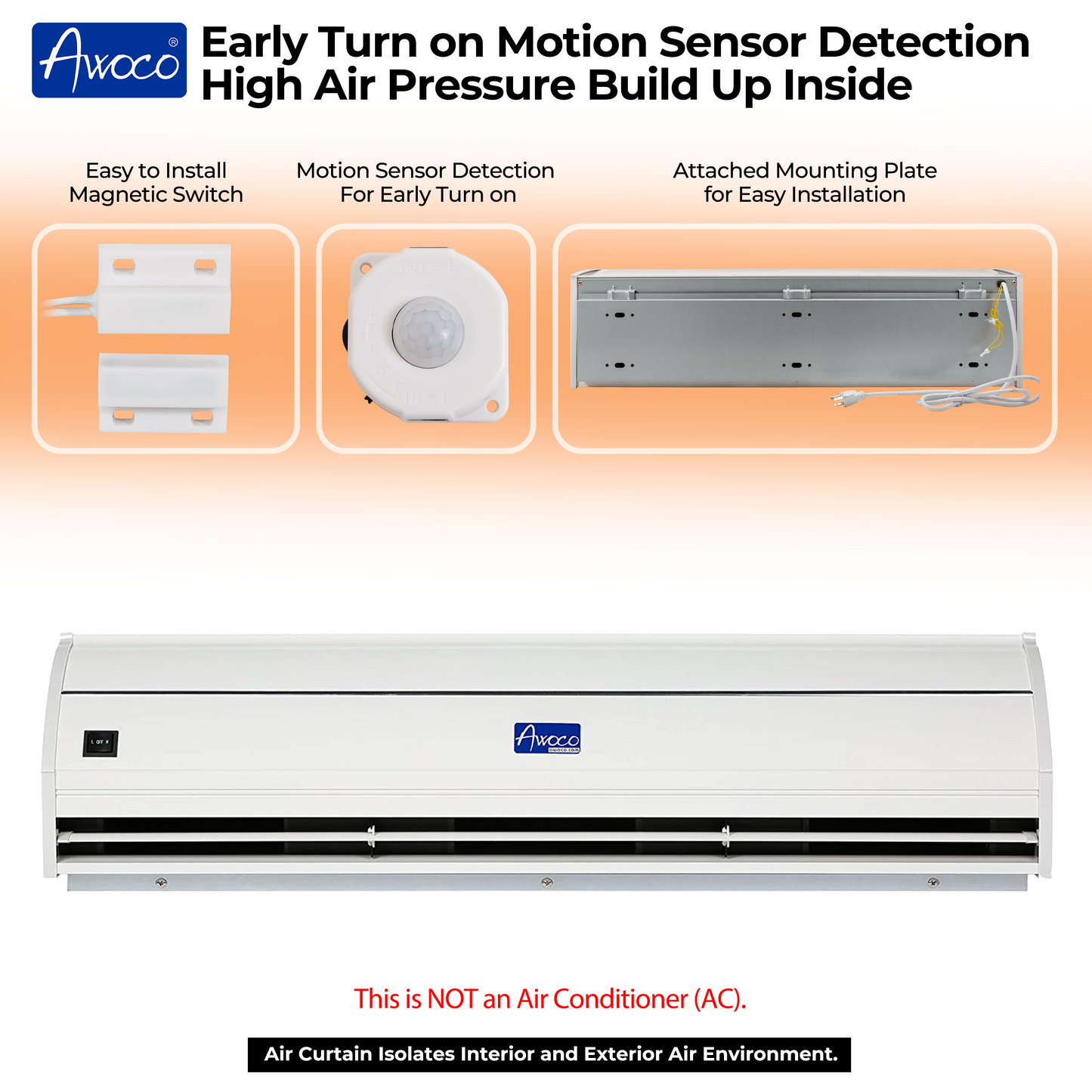

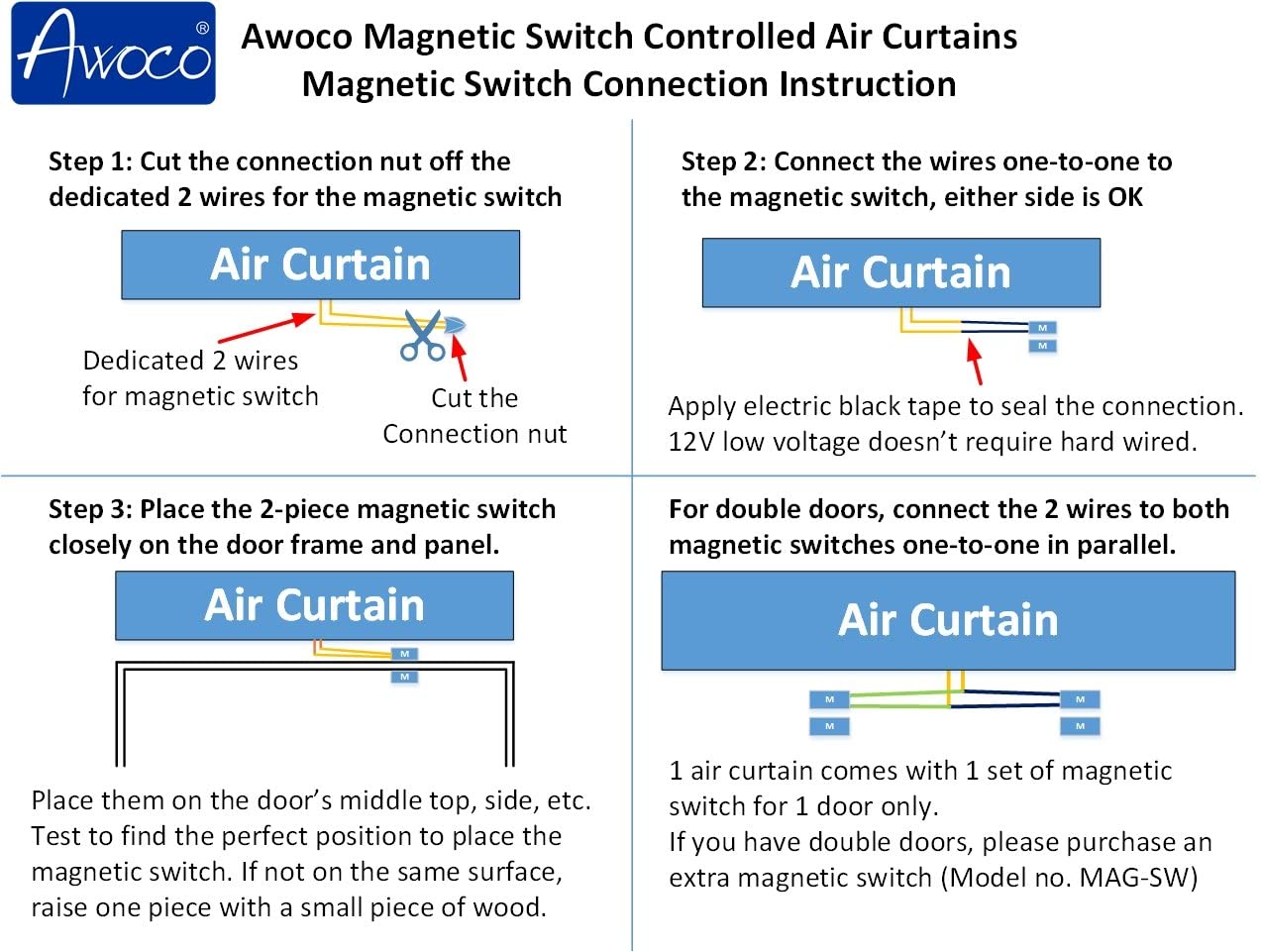

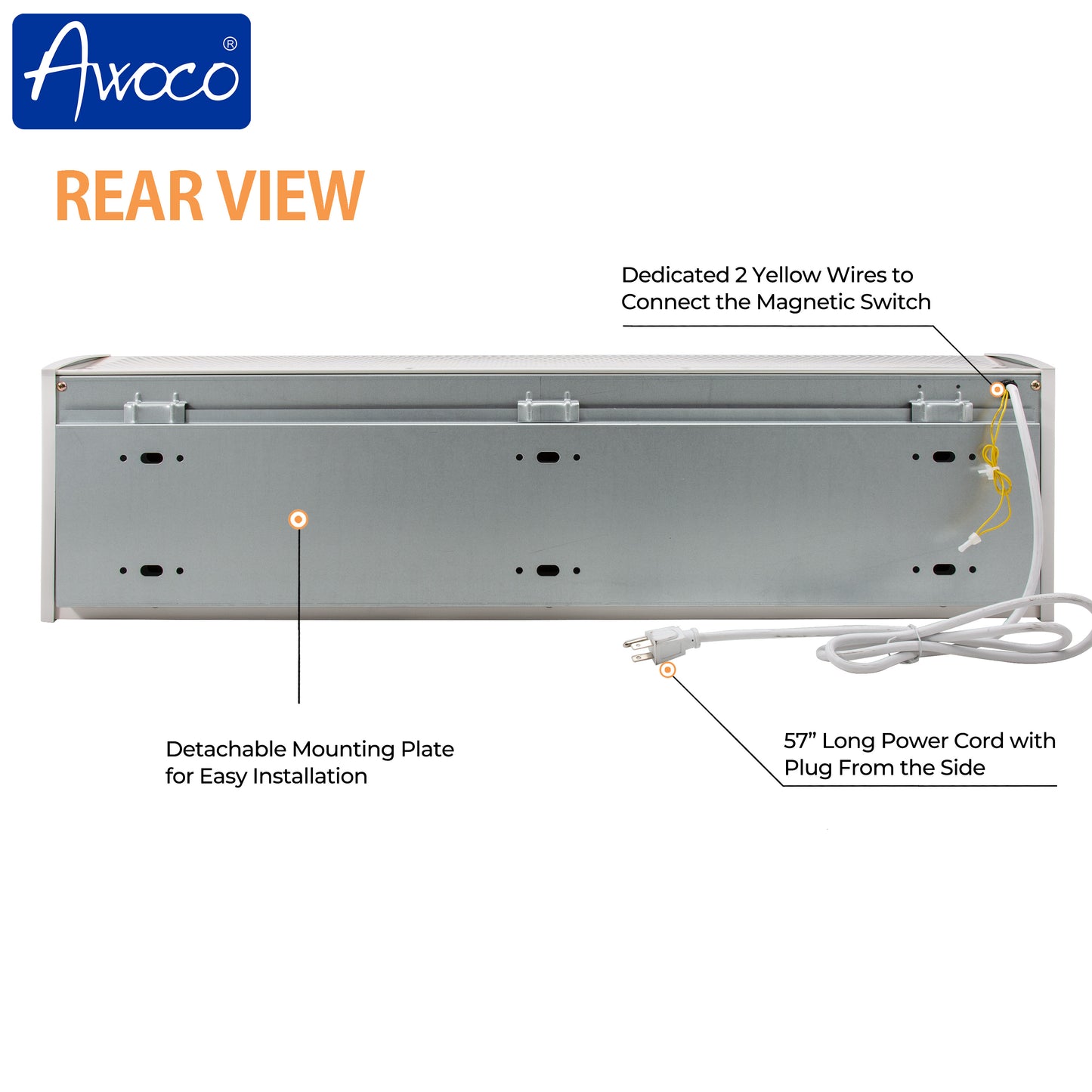

  • [Easy Installation] - Refer to Technical Specification User Manual, installation should be easy. 1) mount the detachable mounting plate securely. 2) hang the air curtain up. 3) install the optional magnetic switch and connect to the dedicated 2 wires. With magnetic switch installed, automatically turn on the air curtain while the door is open.

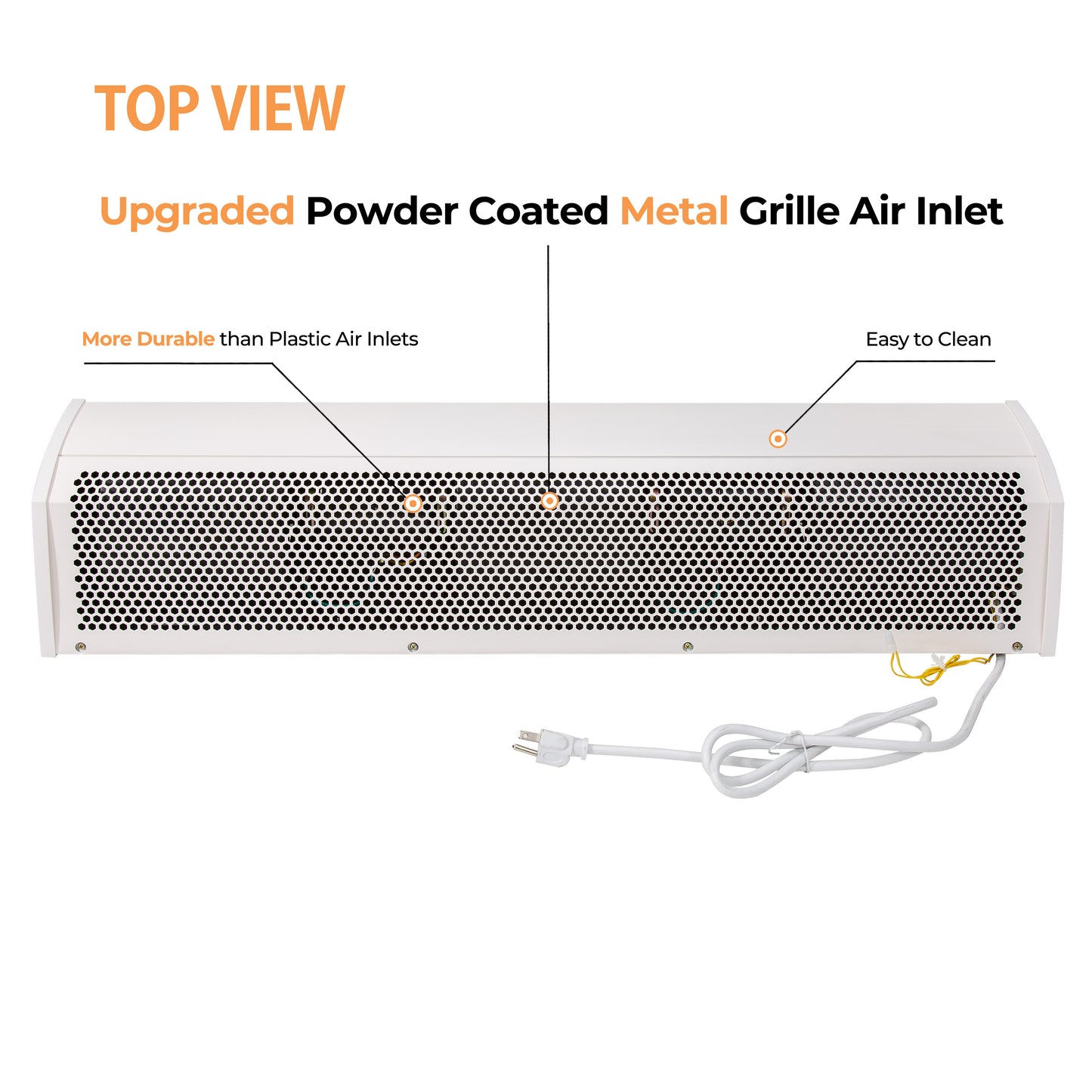

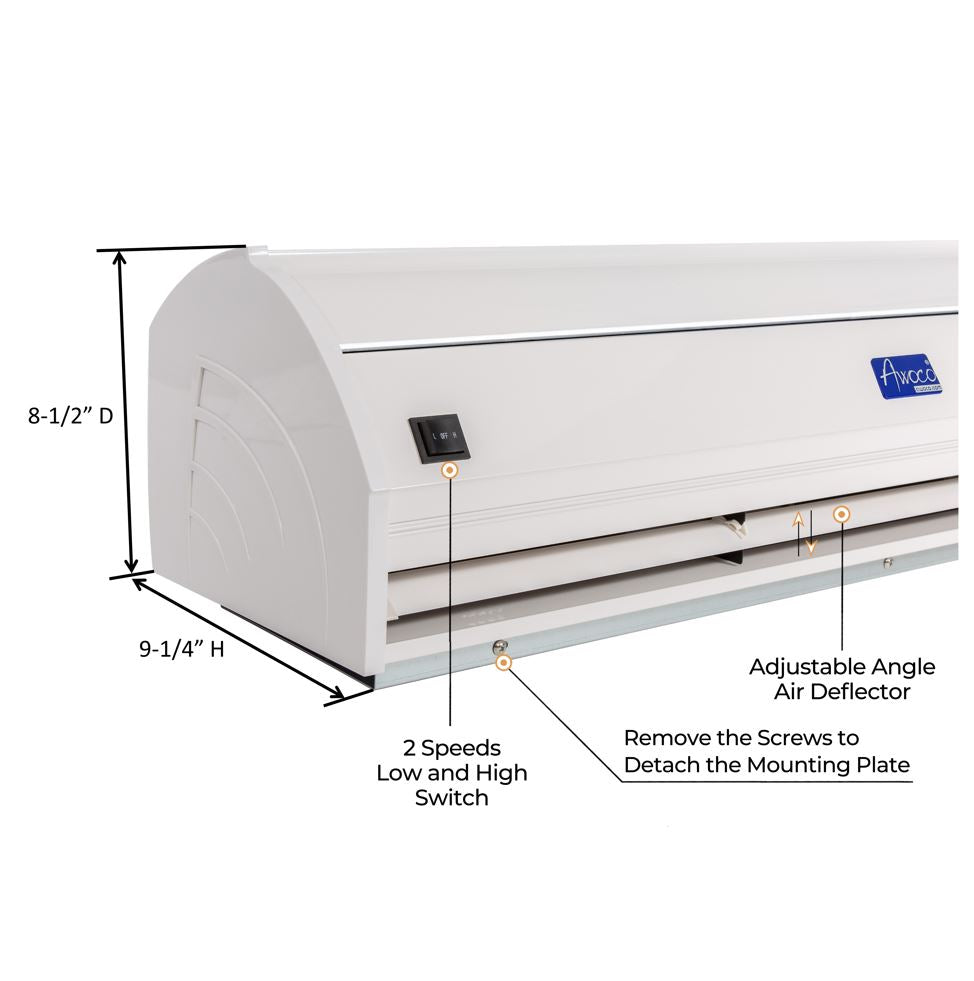

  • [Professional Tech Support] - Parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Overall size: 72” L x 8-1/2” D x 9-1/4” H.. Weight: 51.8 LBS. CE Certified. It is required to have an extra 2" of clearance from the ceiling for top air inlet. Please make sure you have enough space to mount the air curtain.

Media

Product Manual

View

Product Spec Sheet

View

Estimate Shipping

*Contact us for shipping quotes for AK, HI, PR, APO and Other Countries. We apologize for the inconvenience.
