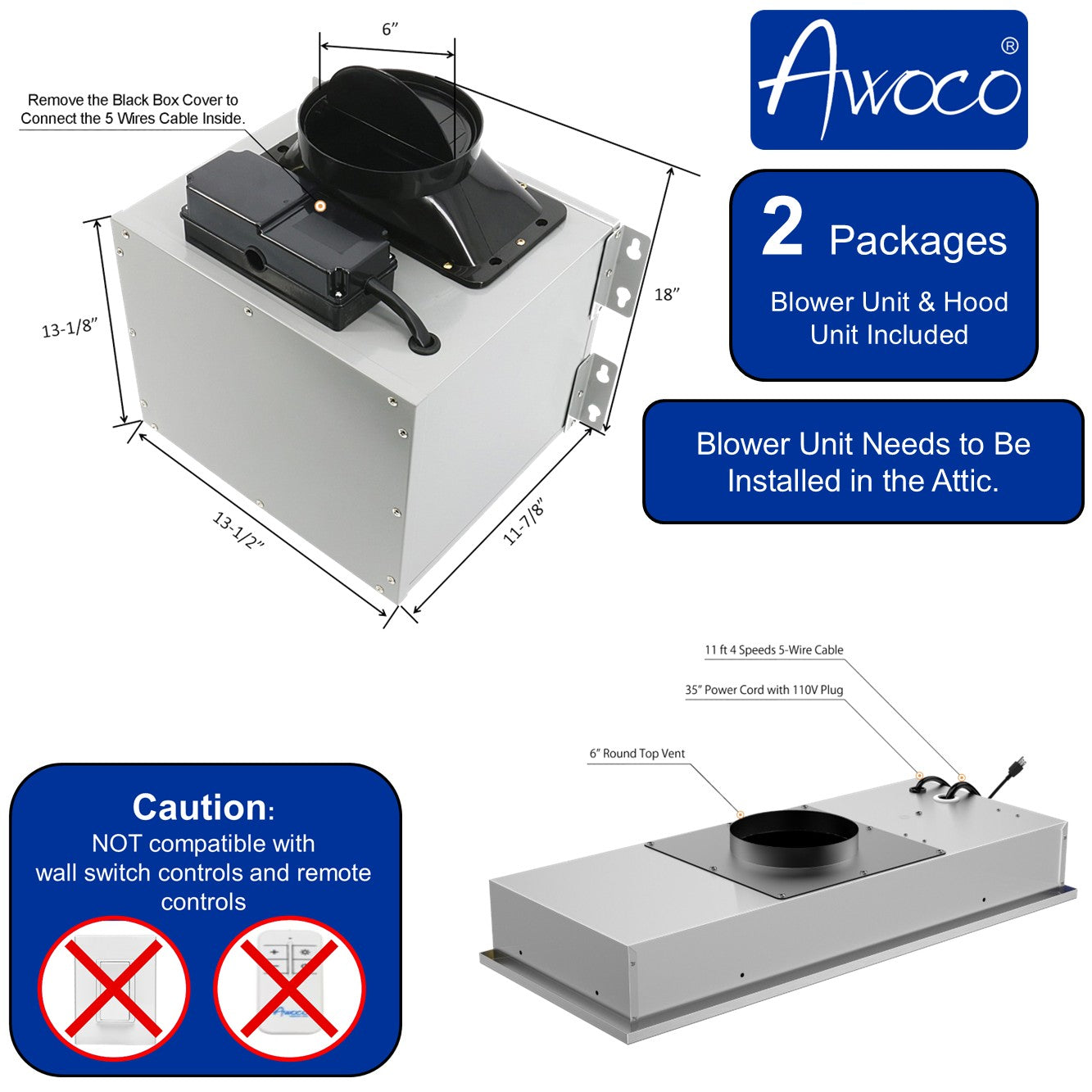

- SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with high quality 1mm thick stainless steel with brush finishing. Perfect for 30” kitchen ranges that fits snug into wood hood.
- 6” ROUND TOP VENT - 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.
- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds (Q, I, II, III up to 800 CFM), sloped view blue highlighted electronic buttons with 2 of 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /160W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones.
- 2 DISHWASHER SAFE BAFFLE FILTERS - Dishwasher safe commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders needed.
- 1 YEAR LIMITED WARRANTY - ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
- DIMENSIONS: Wood Hood cut-out hole size: 26" x 13-3/8". Hood unit overall dimensions: 27-3/4"W x 14-1/2"D x 3-7/8"H. Hood weight: 14 lbs. Blower unit overall dimensions: 13-1/2"W x 11-7/8"D x 15-3/4"H. Blower weight: 20.4 lbs.
Awoco Range Hood IT06 Information
|Model/SKU||Wood Hood Cut-out Hole Size||Overall Size||User Manual|
|RH-IT06-30||26-1/4" x 10-1/4"||27-3/4"W x 11-3/4"D x 4-1/8"H||View|
|RH-IT06-36||33-7/8" x 10-1/4"||35-3/8"W x 11-3/4"D x 4-1/8"H||View|
|RH-IT06-M30||26" x 13-3/8"||27-3/4"W x 14-1/2"D x 6"H||View|
|RH-IT06-M36||34" x 13-1/8"||35-3/8"W x 14-1/2"D x 8"H||View|
