Awoco 4 Speeds Control Unit for Inline Blower Unit with 2 LED Lights

AwocoSKU: AWOCO-RH-SP-CTRL

Price:
Sale price$100.00
Stock:
In stock

Description

  • 4 Speeds Control Unit for Awoco 6" or 8" Inline Blower Unit ONLY- The Blower unit is NOT included. This control unit might NOT be compatible with other brands blowers which are varied by frequency, voltage or waves. Contact us before purchase if you don't have an Awoco blower unit.
  • 4 Speeds Operation - 4 speeds control, blue-lighted soft touch electronic buttons with 2 of 1.5W energy saving cold bright LED lights. 3 minutes timer delayed auto shut off to vent the leftover smoke after done cooking.

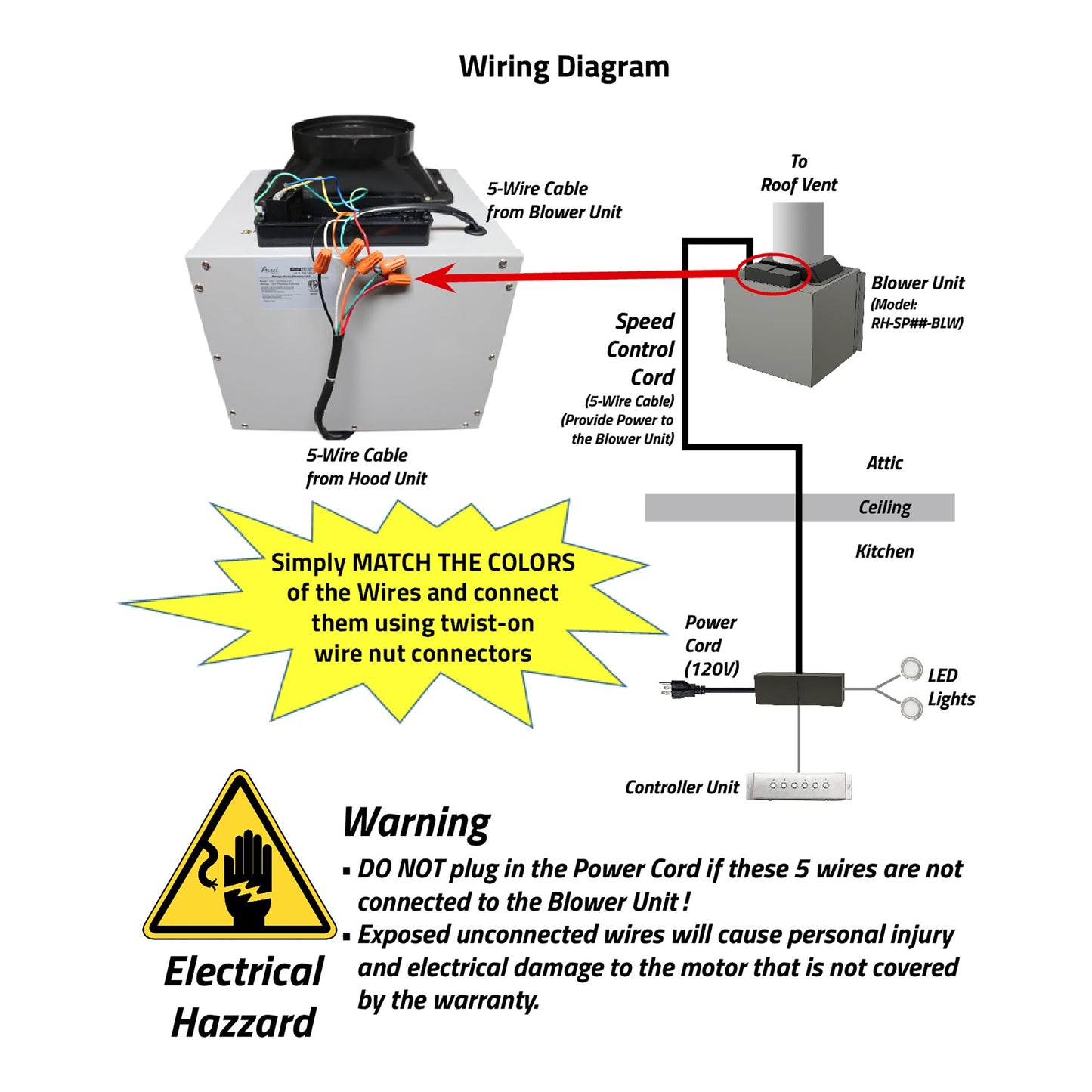

  • Connection Instruction -  Simply MATCH the COLORS of the wires and connect them using the twist-on wire nut connectors to the Blower unit.

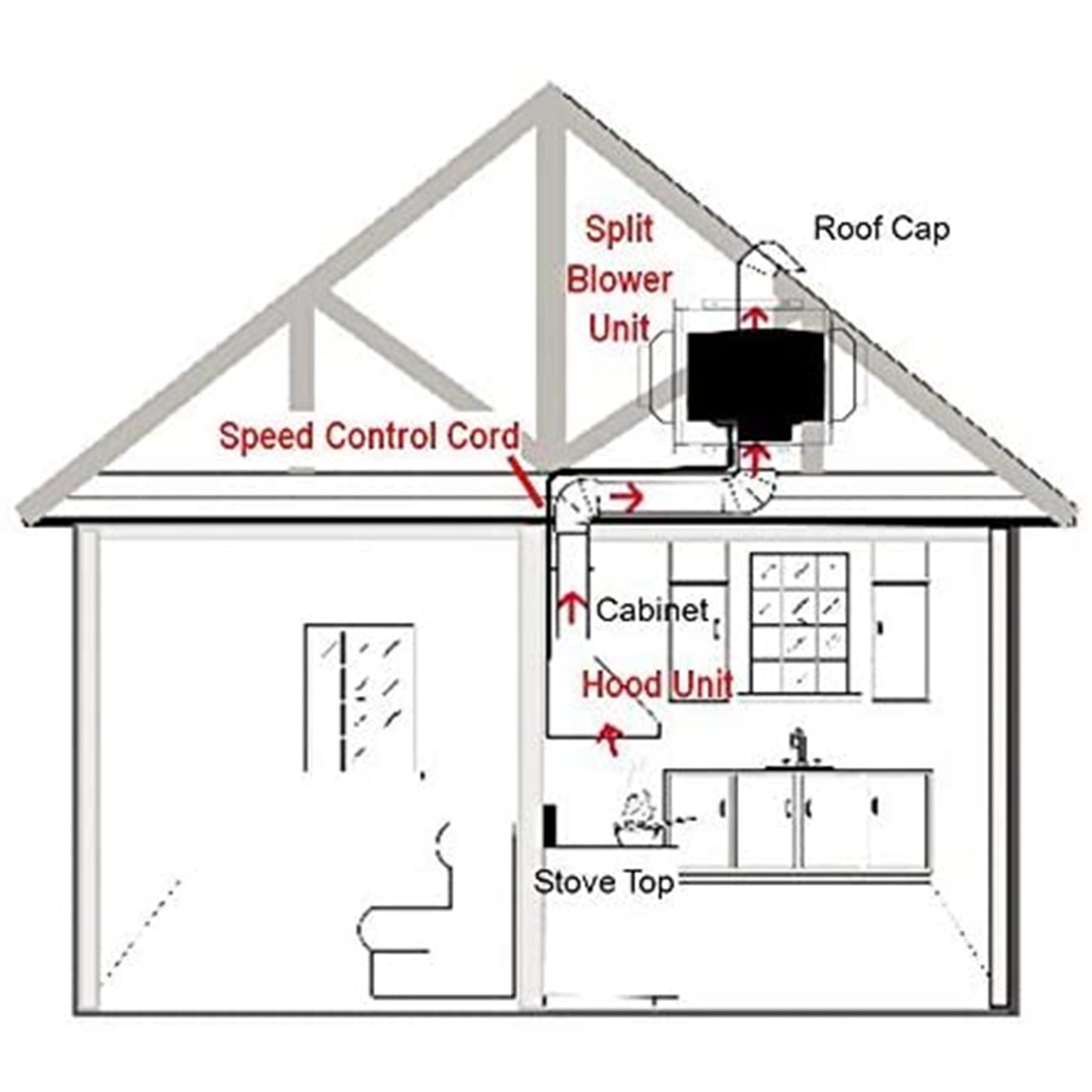

  • Mount the circuit box inside the existing hood or cabinet. Mount the control panel to wall or hood front.

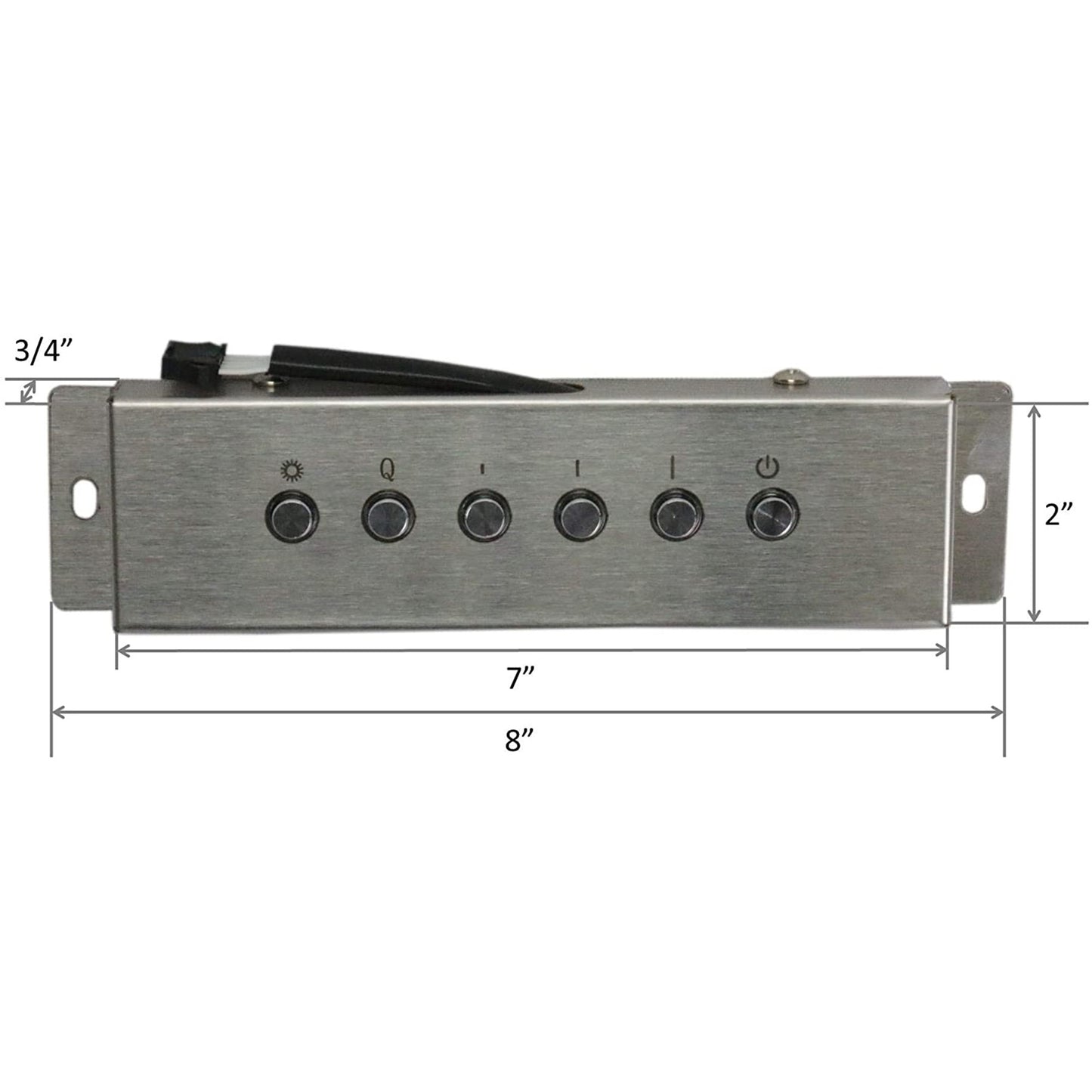

  • The stainless steel control panel is 7" wide x 2" high x 3/4" thick. 11 feet 5 wires cable to the Blower Unit.
  • 5 wires cable colors: Black - Neutral wire, Red - High speed, Green - Medium speed, Orange - Low speed, White - Quiet speed.

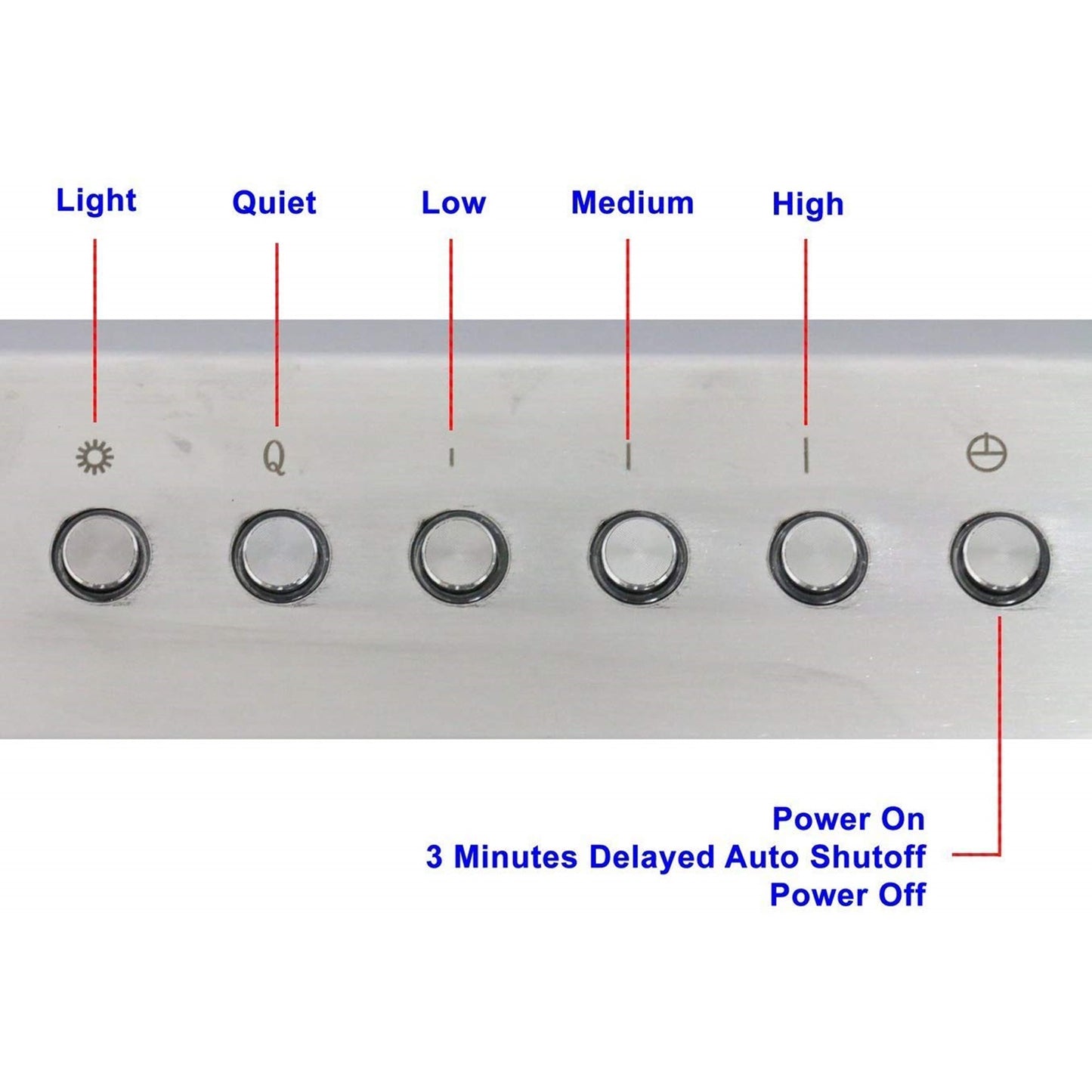

4-speed blue-lighted soft touch electronic buttons control panel.

Very nice looking stainless steel control panel with 2 holes for easy mounting. This is much better than the noisy mechanical push buttons. Also no annoying “beep” sound while pressing on the buttons.


Other Features & Specifications:

  • Optional removable 2 of 1.5W energy efficient cold bright LED Lights
  • Power rating: 120V/60Hz, 300W Max

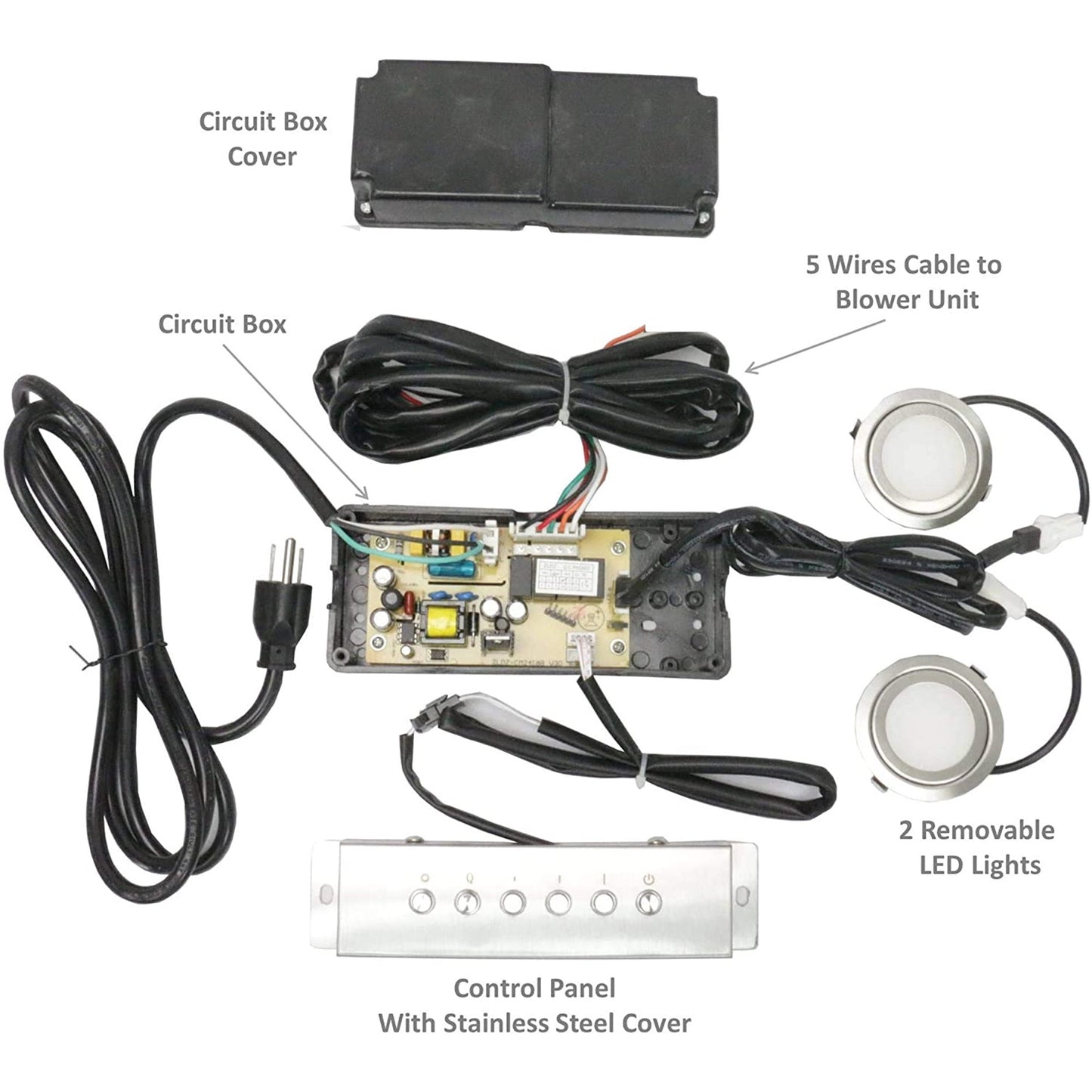

  • Package includes:
  • Stainless steel control panel
  • Circuit box with power cord
  • 2 Removable LED Lights
