Description

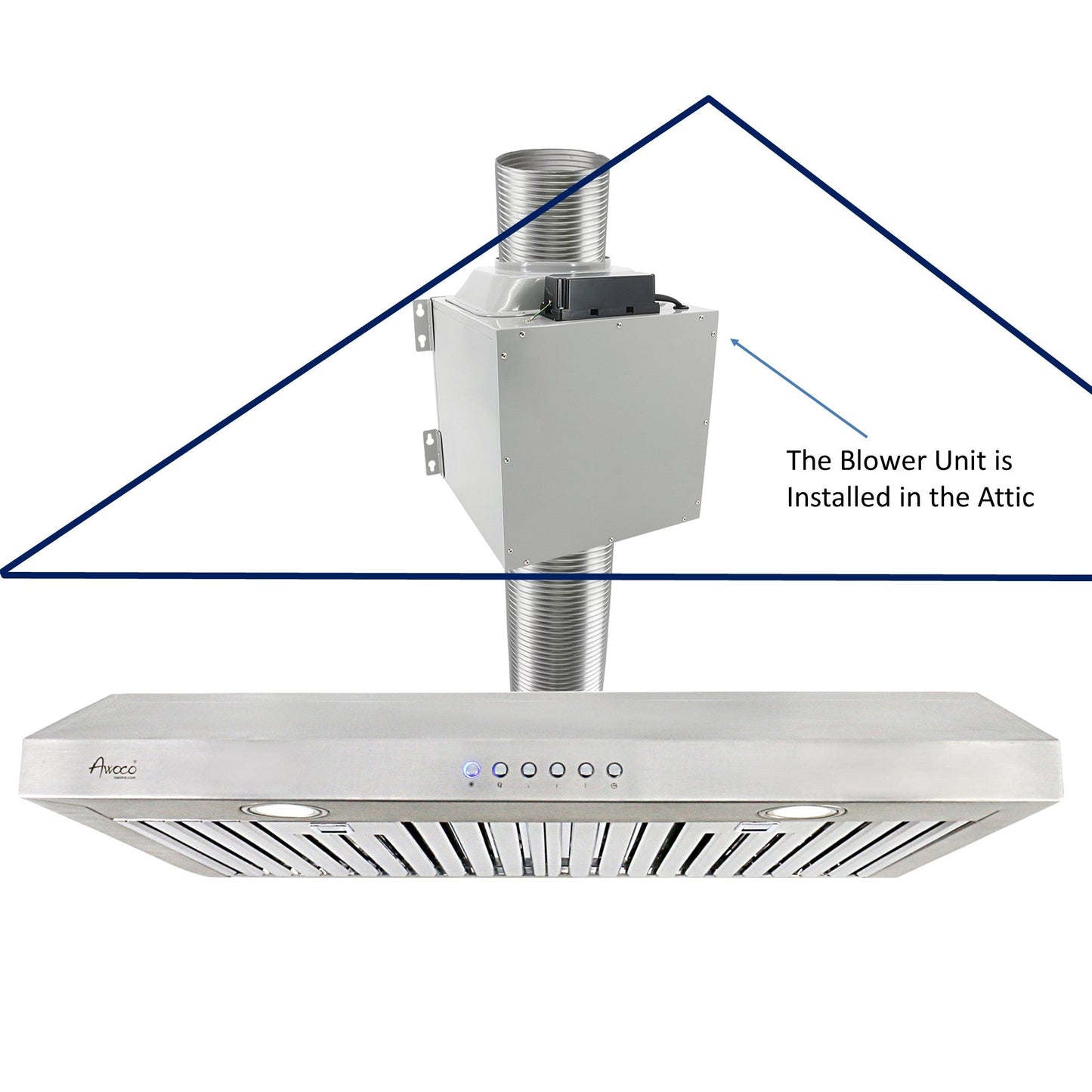

- SUPER QUIET INNOVATIVE SPLIT COMPLETE SET - includes Hood unit and Blower unit. This builds a super quiet split range hood system, the Blower unit is mounted in in the attic. 3 dishwasher safe stainless steel baffle filters, The oil is contained in the baffle filters, no oil holders needed. 3 minutes auto shut off to vent the leftover smoke after done cooking.

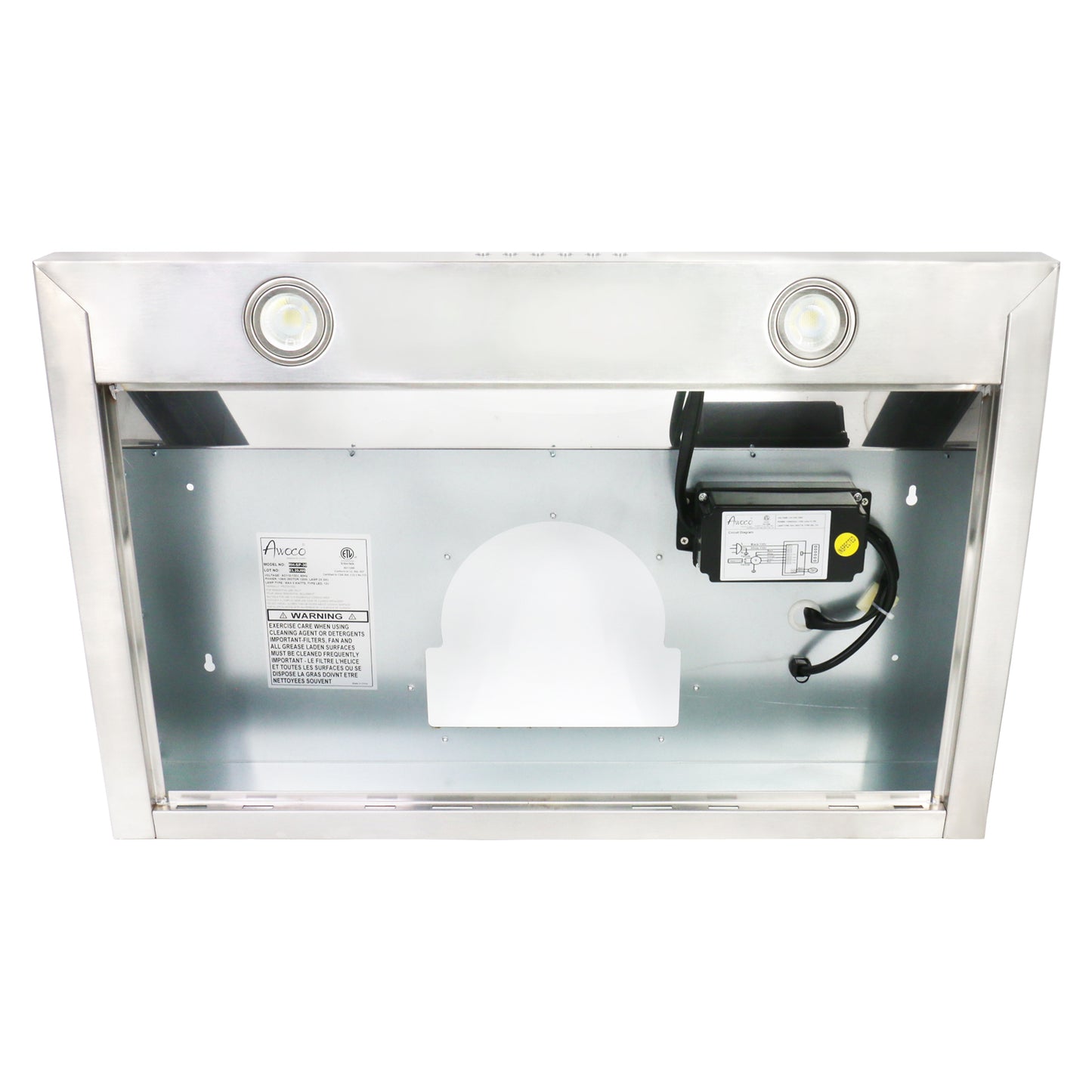

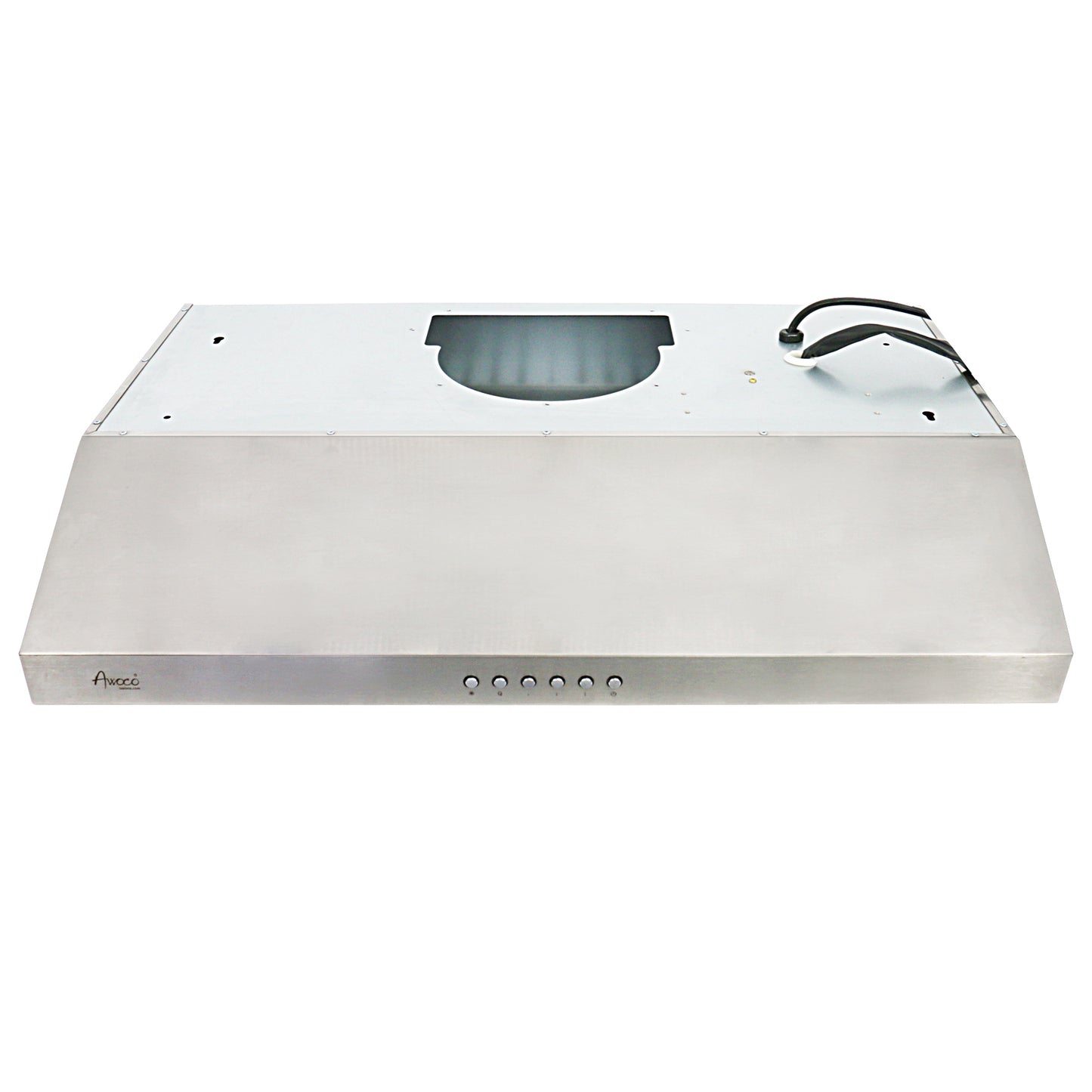

- SUPER SLIM 5” HIGH, 1mm THICK HOOD UNIT - under cabinet or wall mounted, high quality 1 mm thick stainless steel with brush finishing. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.

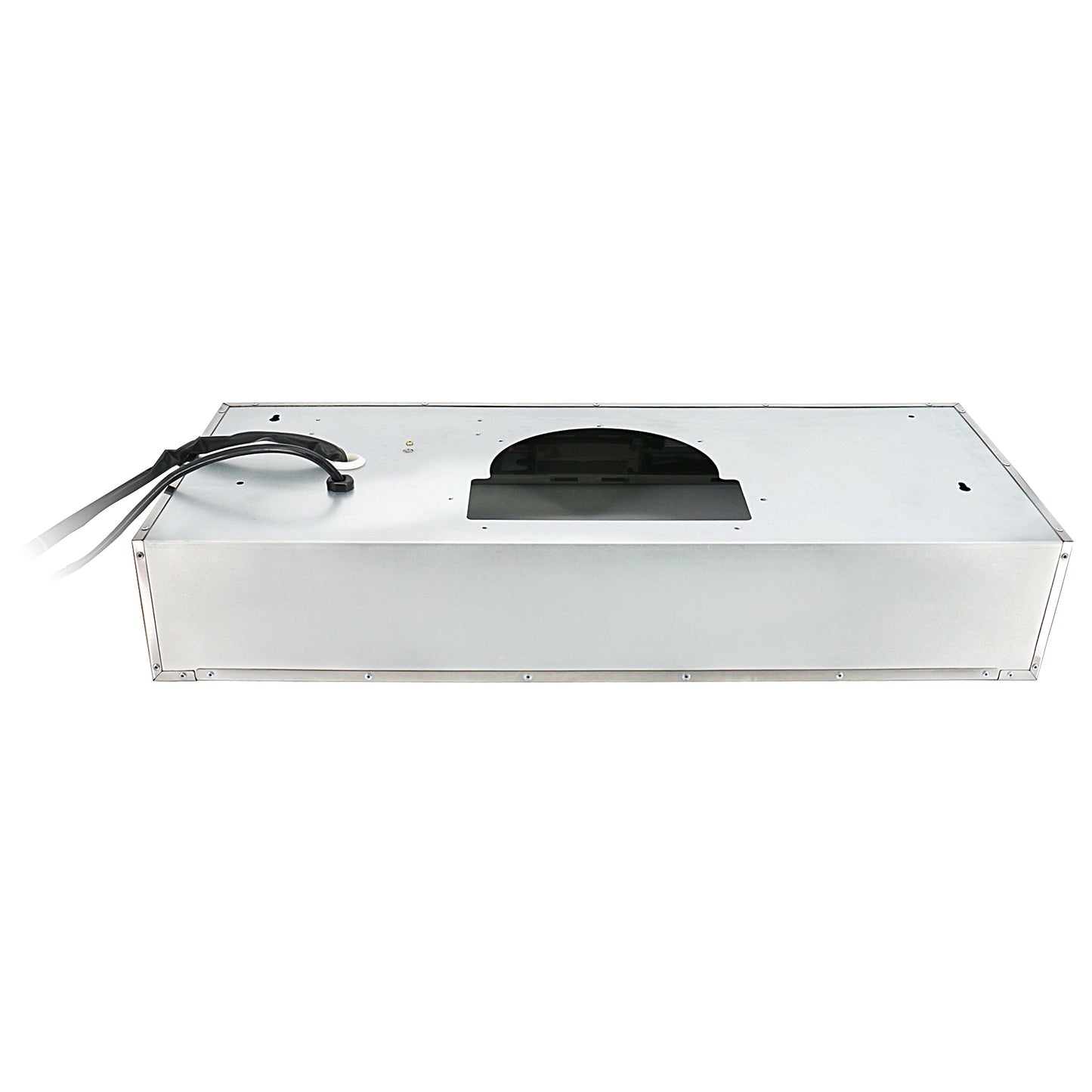

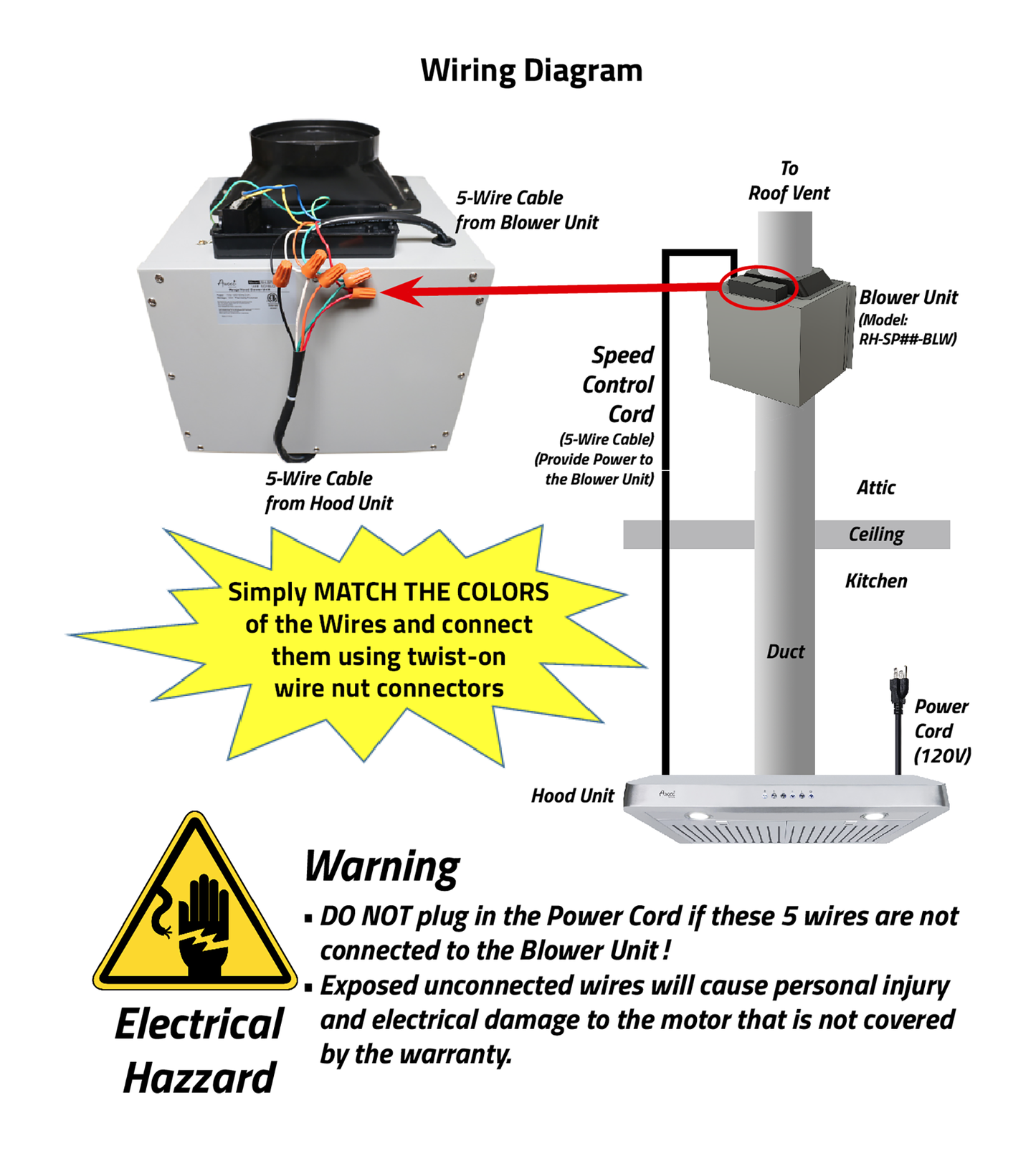

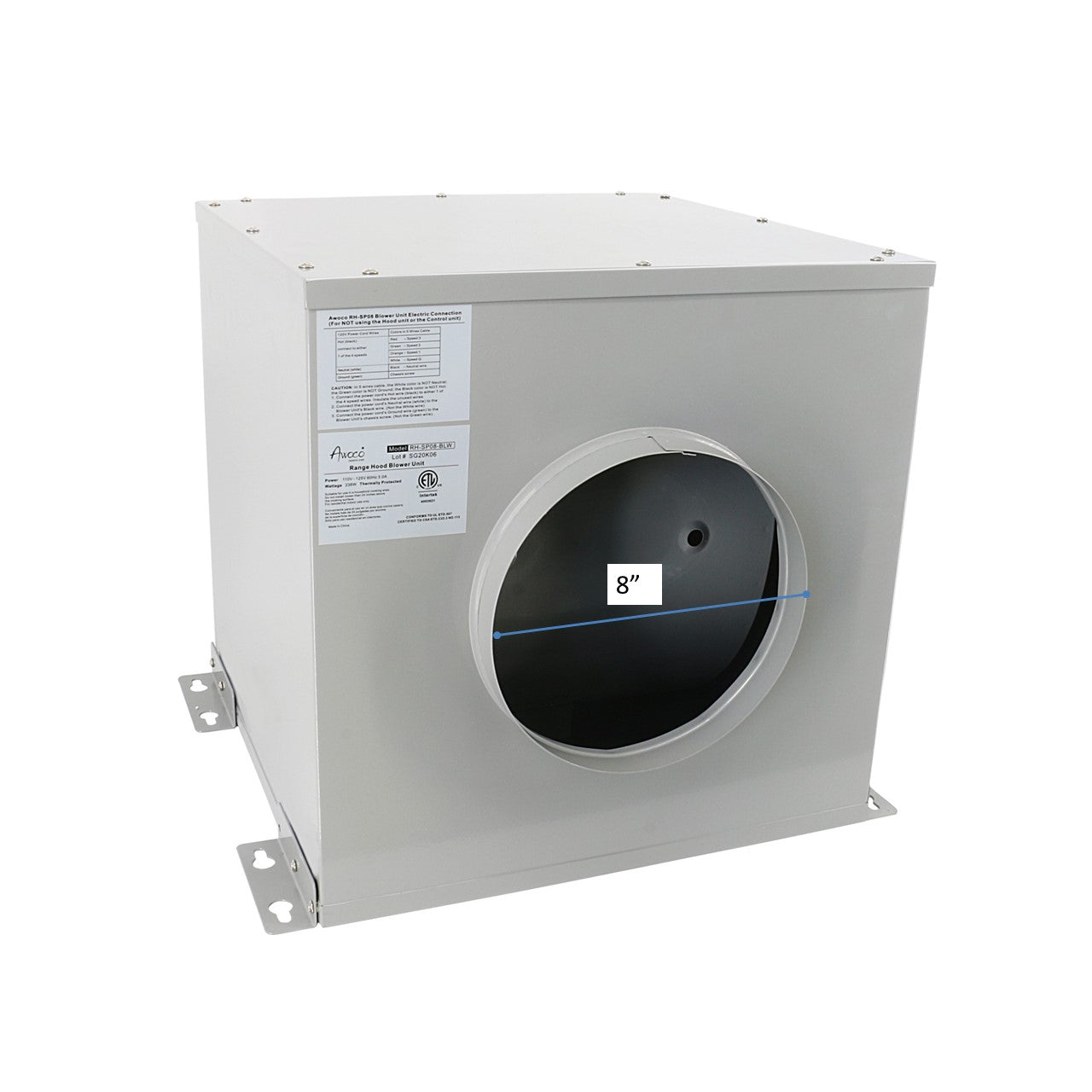

- 8” ROUND TOP VENT - 8” round top exhaust vent on Hood Unit (NO rear vent) and 8” round vent for Blower Unit. The ducts and air damper are NOT included. Please purchase 2 of 8” flexible aluminum round ducts for hood vent to blower unit and the blower unit to house exhaust vent.

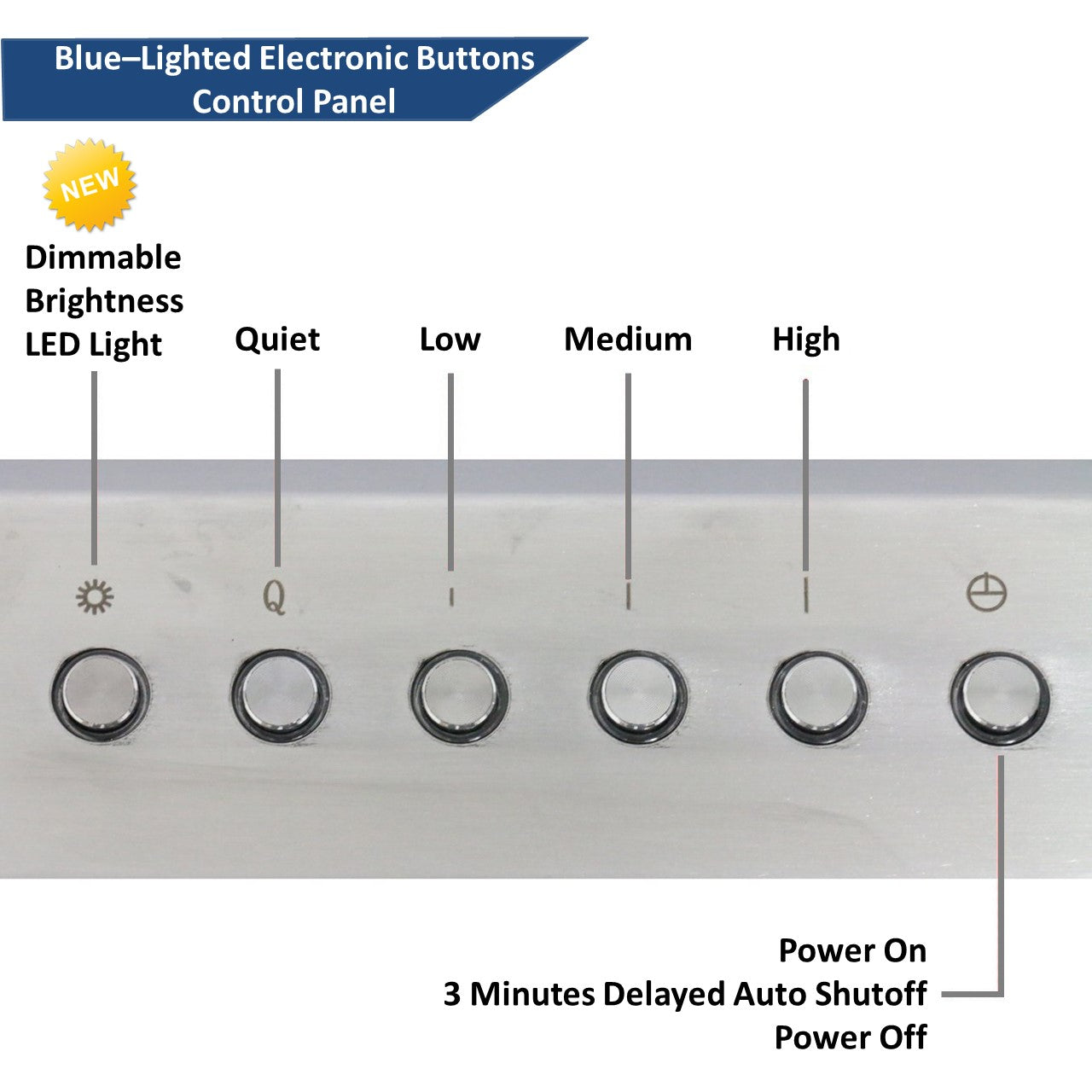

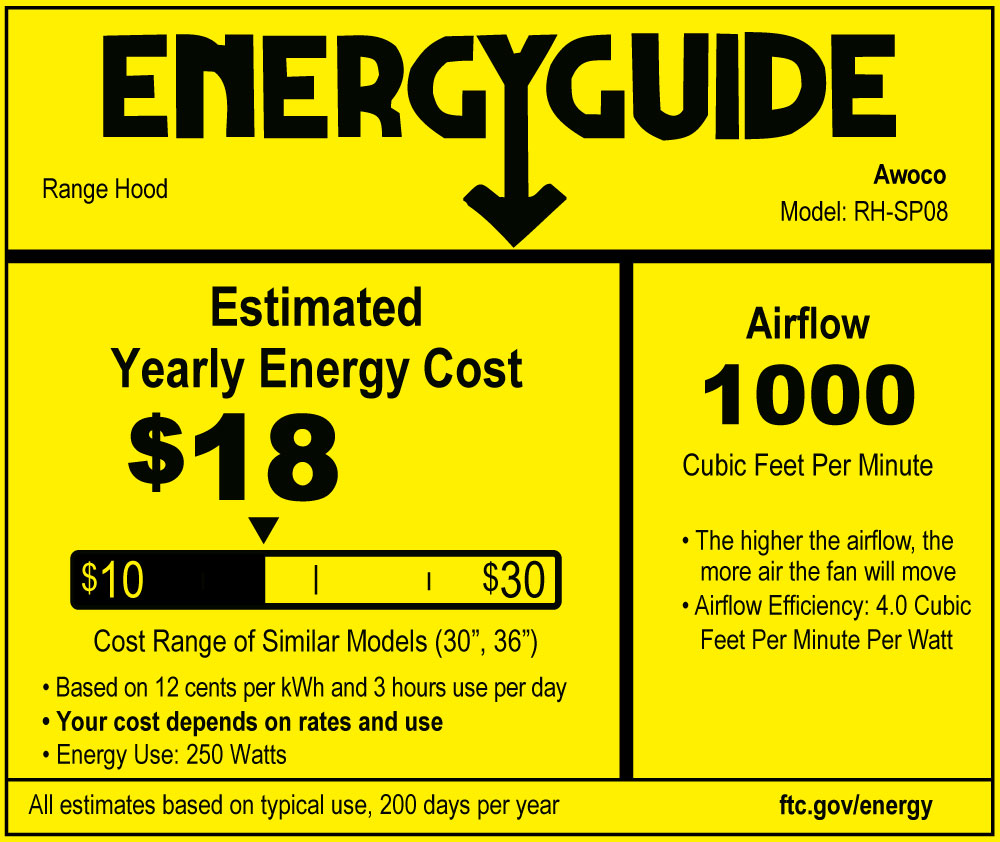

- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds (Quiet, I, II, III up to 1000 CFM), blue-lighted soft touch electronic buttons with 2 of 3W energy saving cold bright LED lights. 1 motor and 2 of 5” wide Centrifugal Squirrel Cage Fan Wheels. Power rating: 120V/60Hz, 85W Min /188W Max. Power cord with plug is included. Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones.

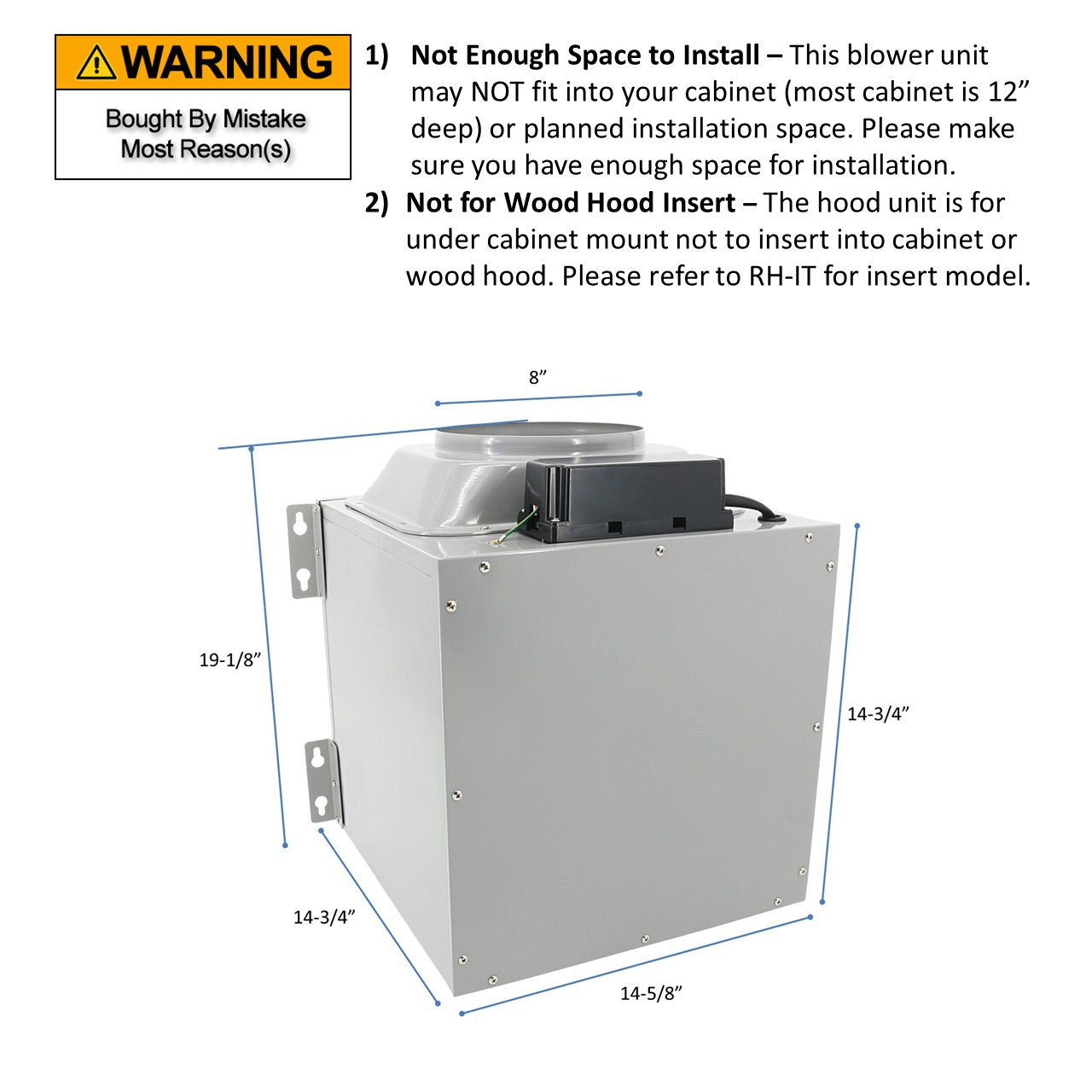

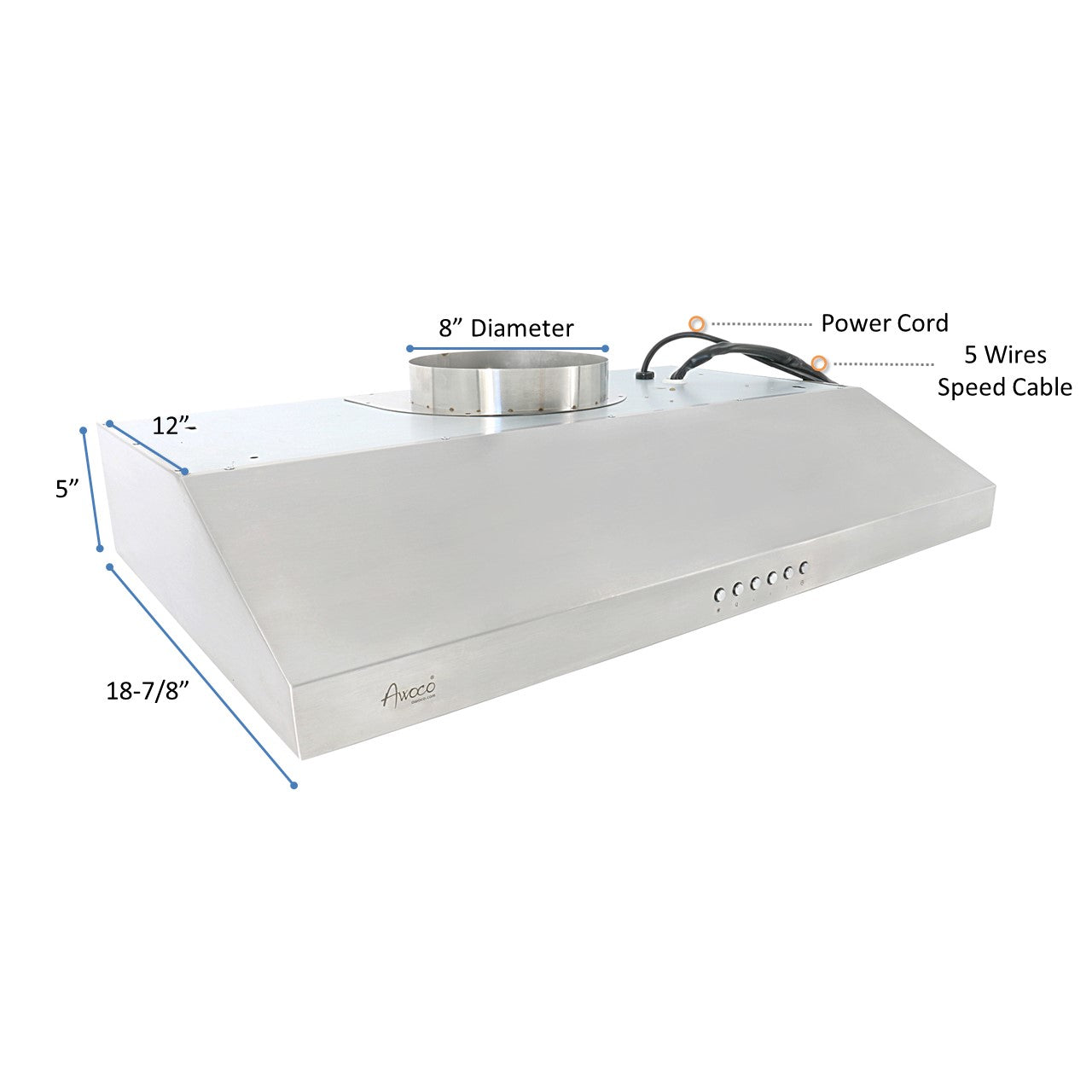

- 1 YEAR USA LIMITED PARTS WARRANTY - Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Hood dimensions: 35-1/2"W x 18-7/8"D x 5"H, 5" High low profile, for 36" kitchen ranges. Hood weight: 20.8 lbs. Blower unit dimensions: 14-5/8"W x 14-3/4"D x 19-1/8"H. Blower weight: 27.5 lbs.
