- Various of actuators that are taken convenience for using. 380V/220V/110V @ 20A

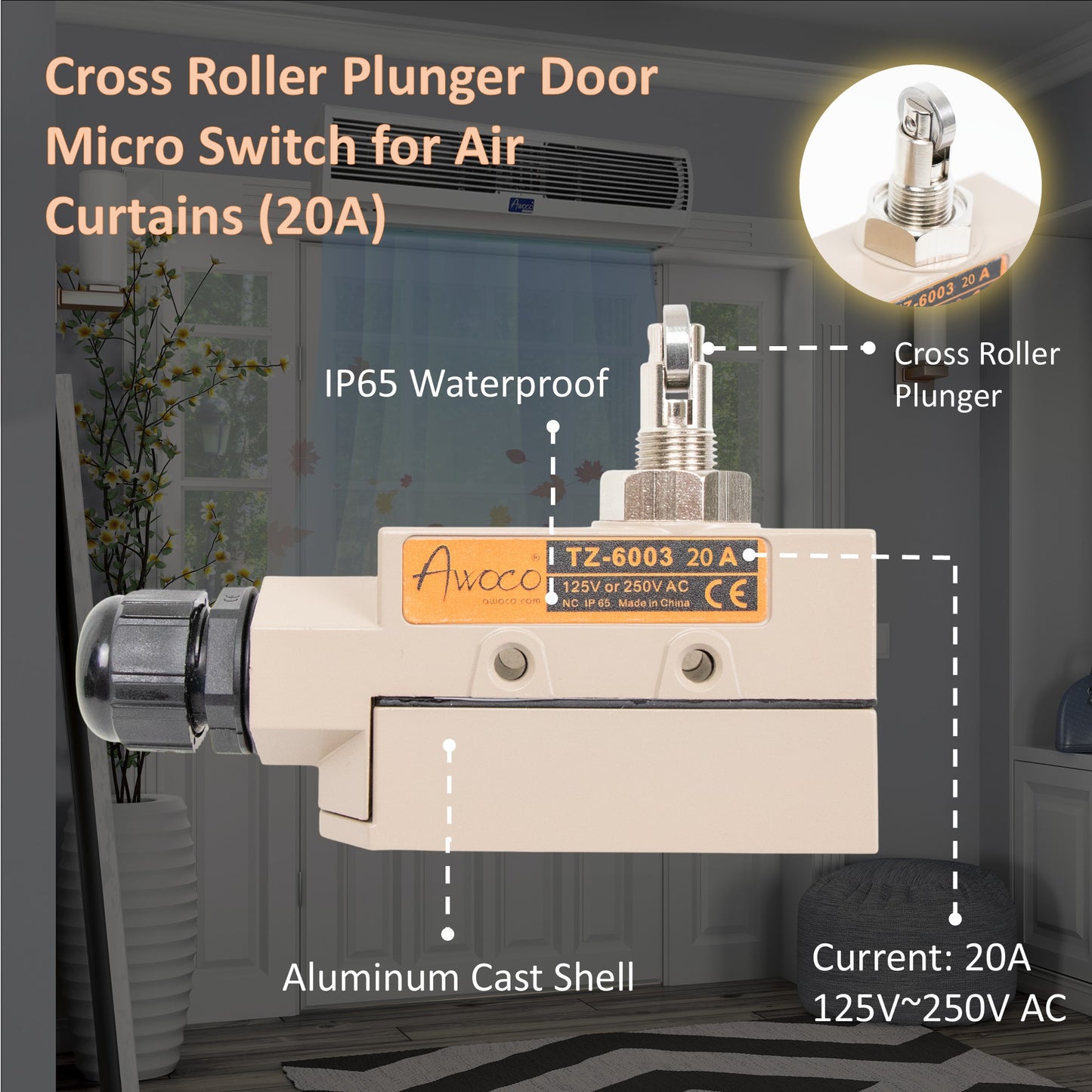

- Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oiled proof.
- It is the same as CM Micro Switch in the rated value and characteristics.
- Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

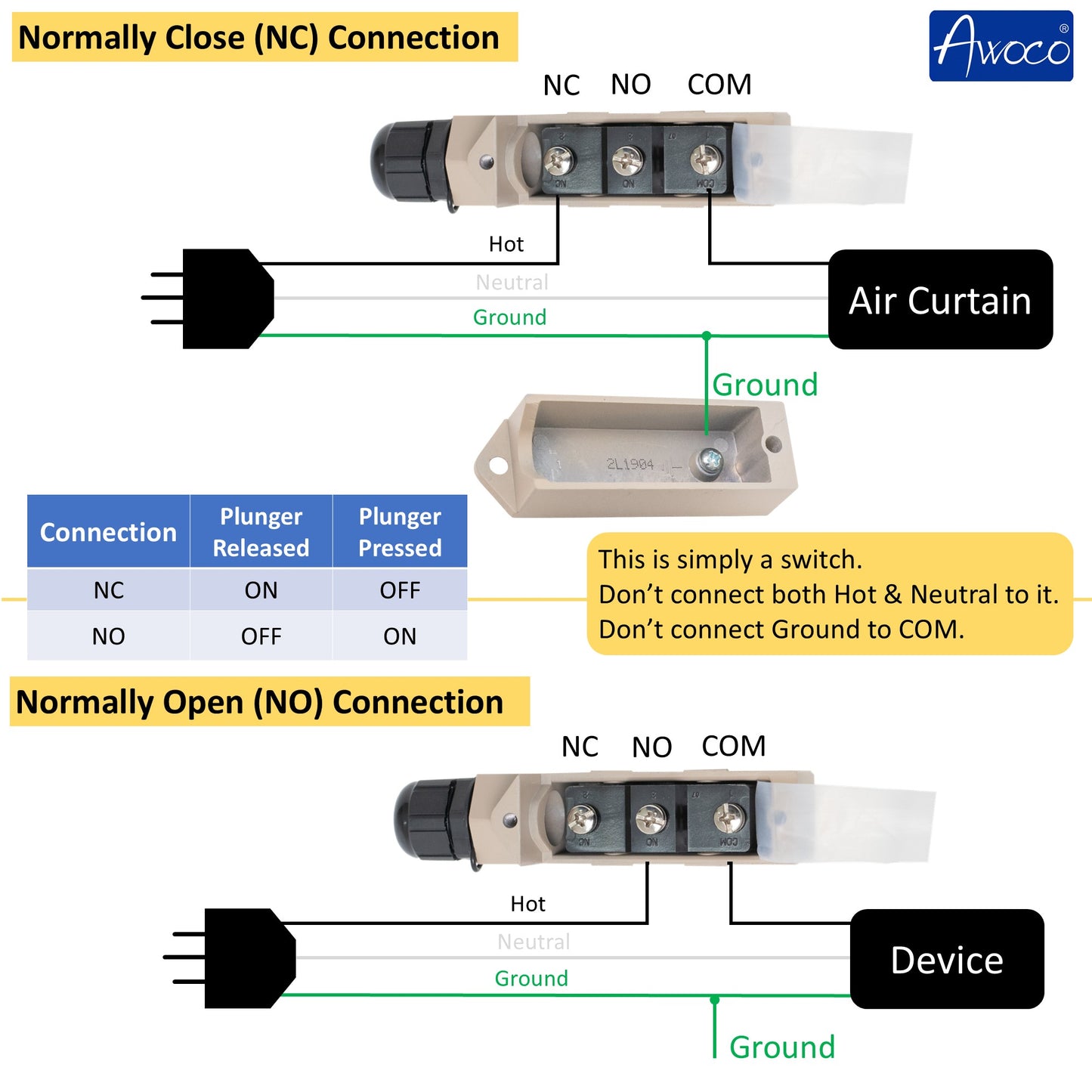

- Type NO (Normally Open) and Type NC (Normally Closed) are integrated into this micro switch.

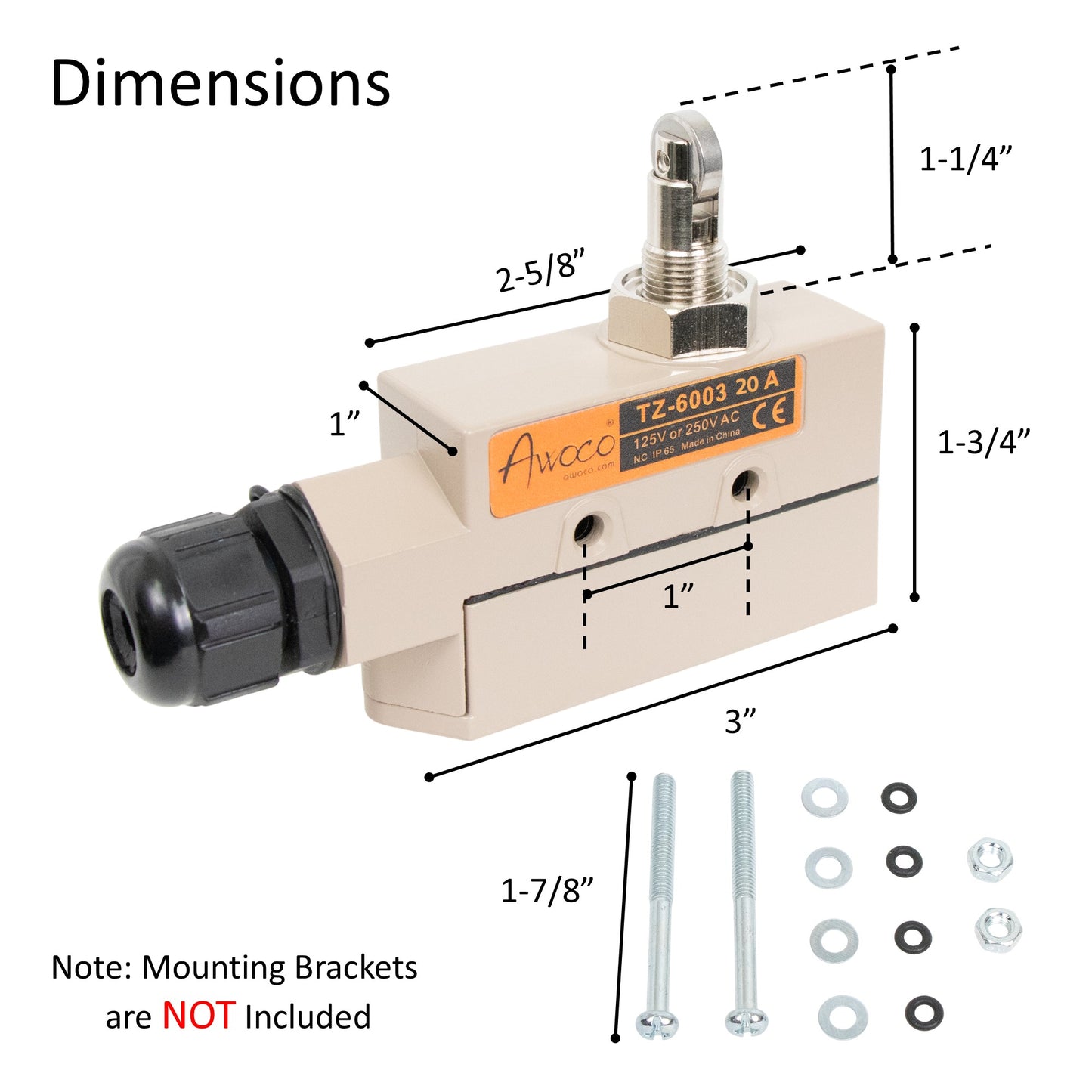

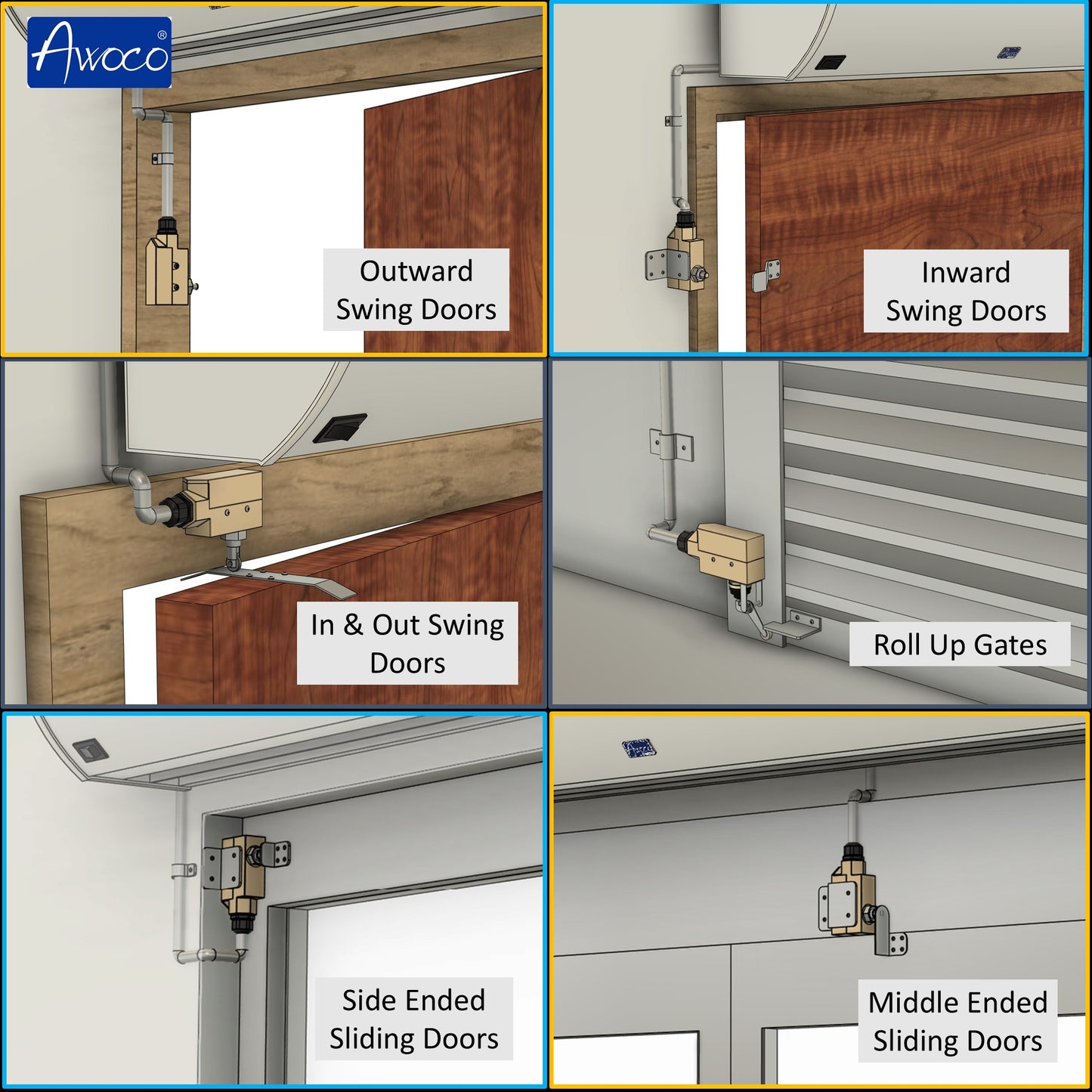

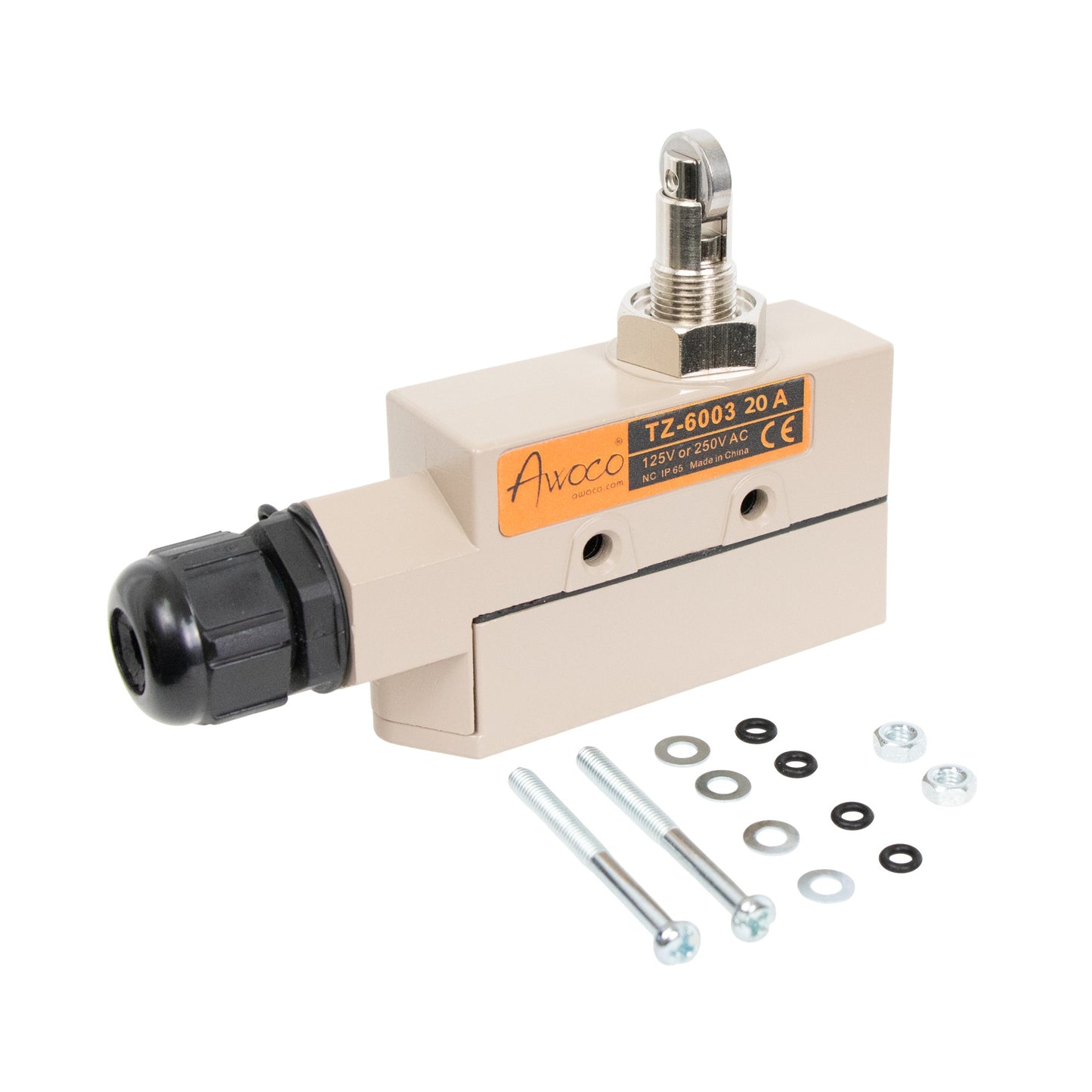

- Model: TZ-6003-20A, Roller Plunger is easier than none roller plunger switch for Air Curtains Door Access.
