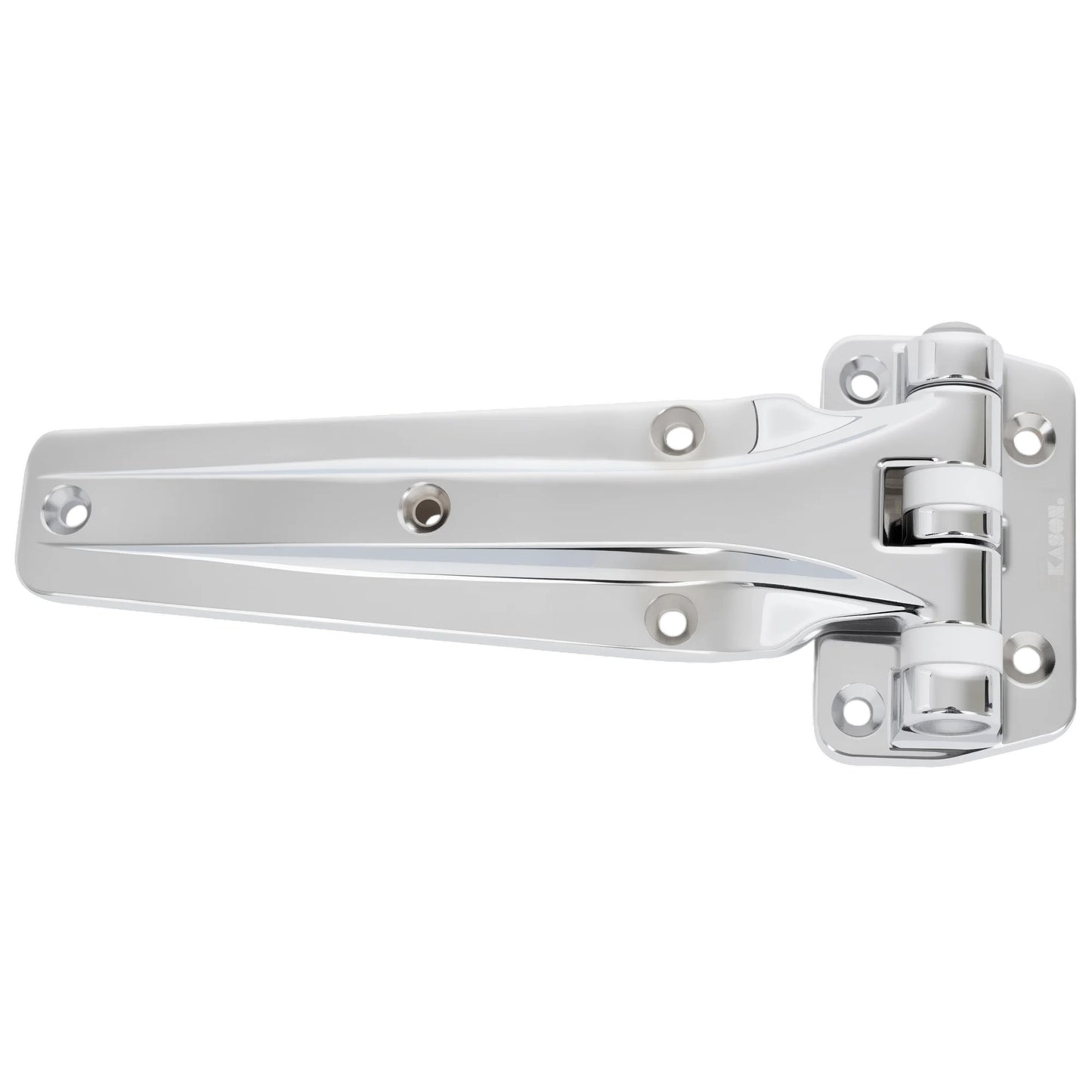

KASON 1241 Heavy Duty Reversible Surfacemount Double Knuckle Hinge Chrome Finish for Walk-in Freezer/ Cooler/ Refrigerator/ Restaurant Equipment

KASONSKU: KSN-1241-Flush

Offset: Flush
Price:
Sale price$85.00
Stock:
In stock

Description

  • Heavy Duty - Double knuckle, non-rise hinge engineered for maximum structural strength. Ribbed underside construction reduces weight and ensures rugged, no sag dependability. 250,000 cycle functional testing without significant wear.
  • Reversible Left or Right Handed - Supplied as right hand. Reversible by removing the through pin and washers, and reassembling on opposite sides of strap. The through pin's big cap should be on the top after installation to avoid falling off.

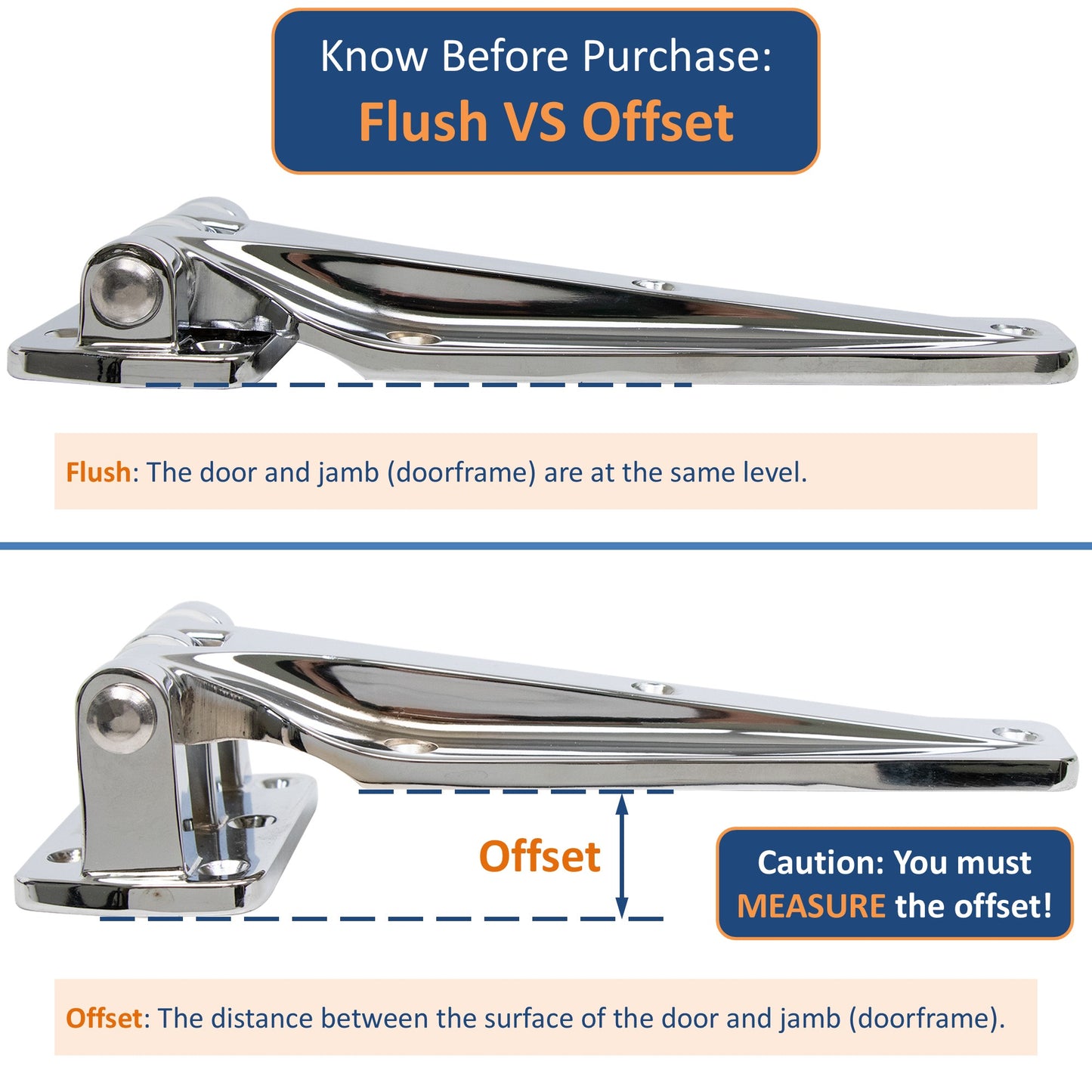

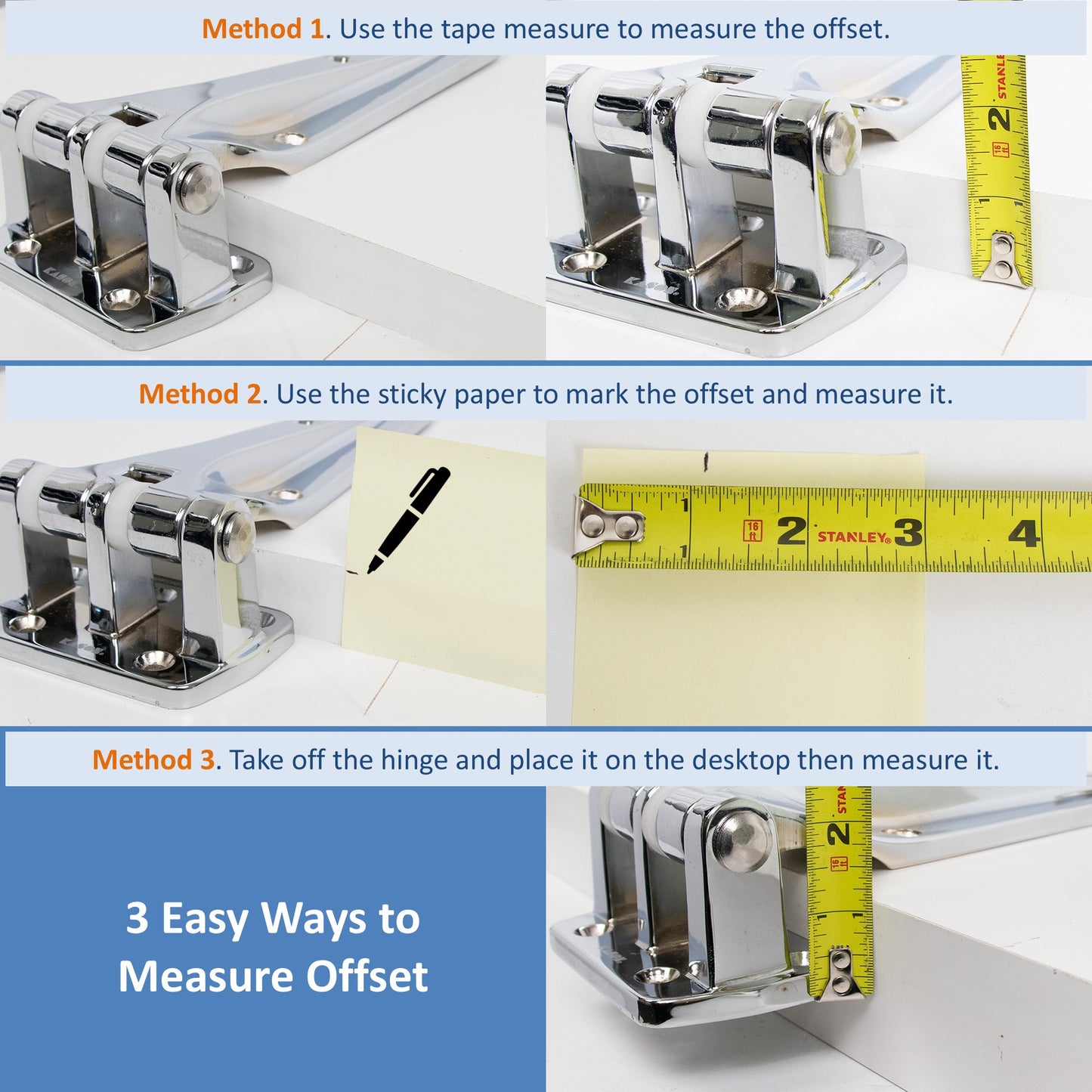

  • Flush vs Offset - Flush: the door and jamb (doorframe) are at the same level. Offset means the distance between the surface of the door and jamb (doorframe). Follow the picture instructions to measure the offset accurately.
  • Mounting holes for 1/4" screws - Drilled and countersunk mounting holes for 1/4" (6.0 mm) Oval Head screws. NOTE: Screws are not included.

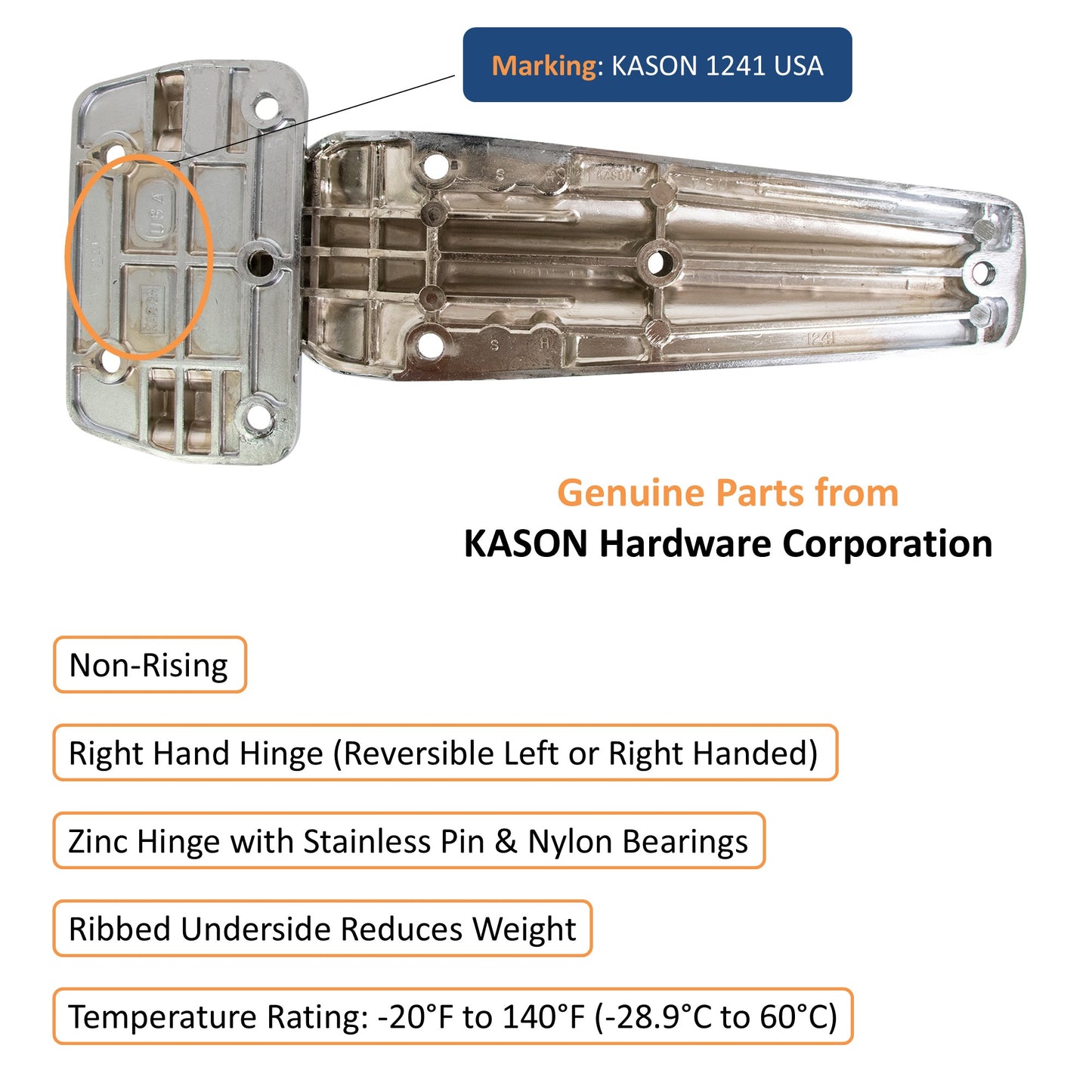

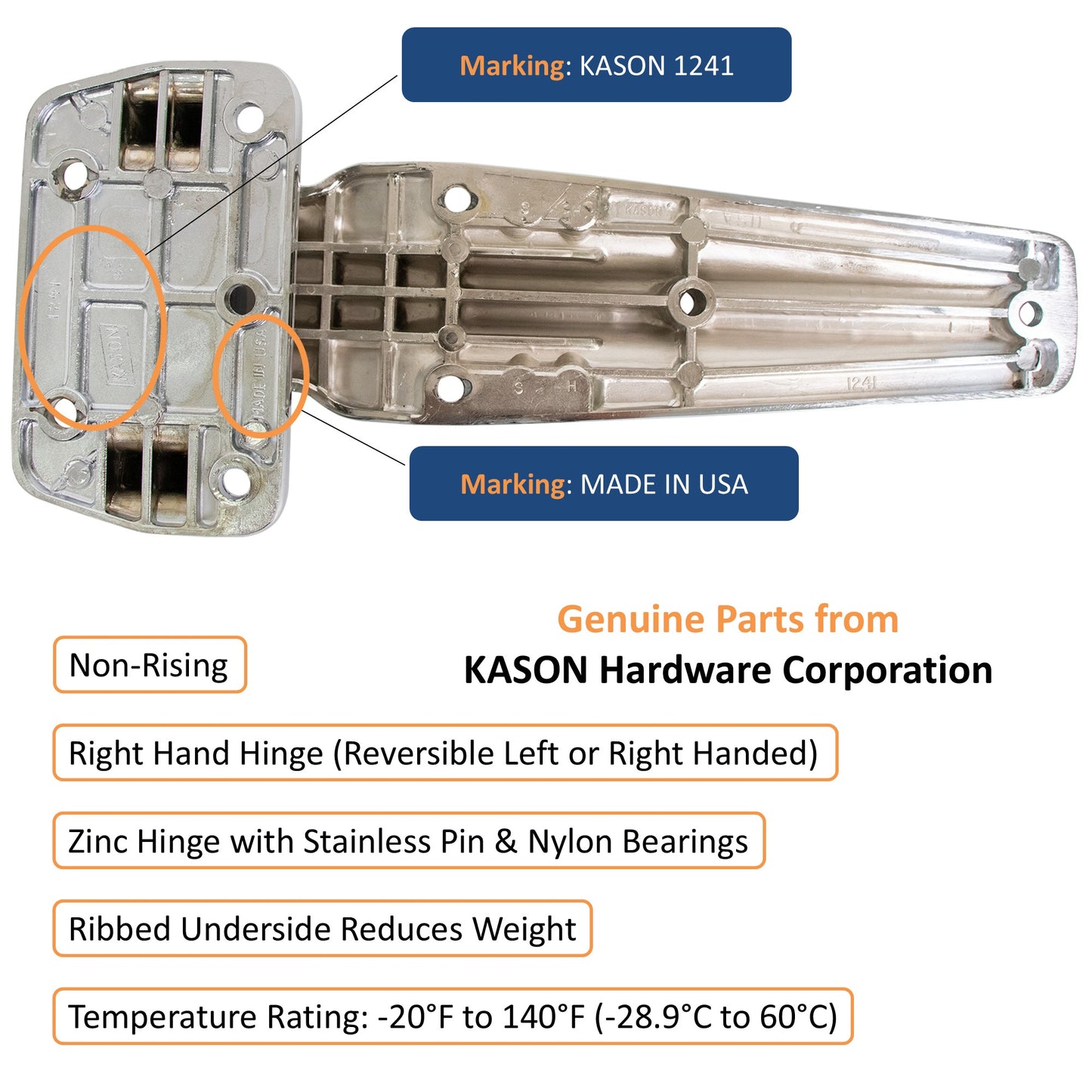

  • Materials - Flange/Strap: Zinc, polished chrome powder coat finish. Thrust Bearing: Nylon. Thrust Washer: Stainless steel. Pin Bearing: Nylon. Headed Pin: Stainless steel, passivated. Temperature Rating: -20°F to 140°F (-28.9°C to 60°C).
