Maxitrol RV48L Liquid Propane Pressure Regulator, 1/2" FPT Thread, 13/16" In and Out Opening, 1/2 PSIG In, 5"-12" WC Out (1/2" Propane Gas LP)

MaxitrolSKU: MAXITROL-52-1010

Price:
Sale price$26.99
Stock:
In stock

Description

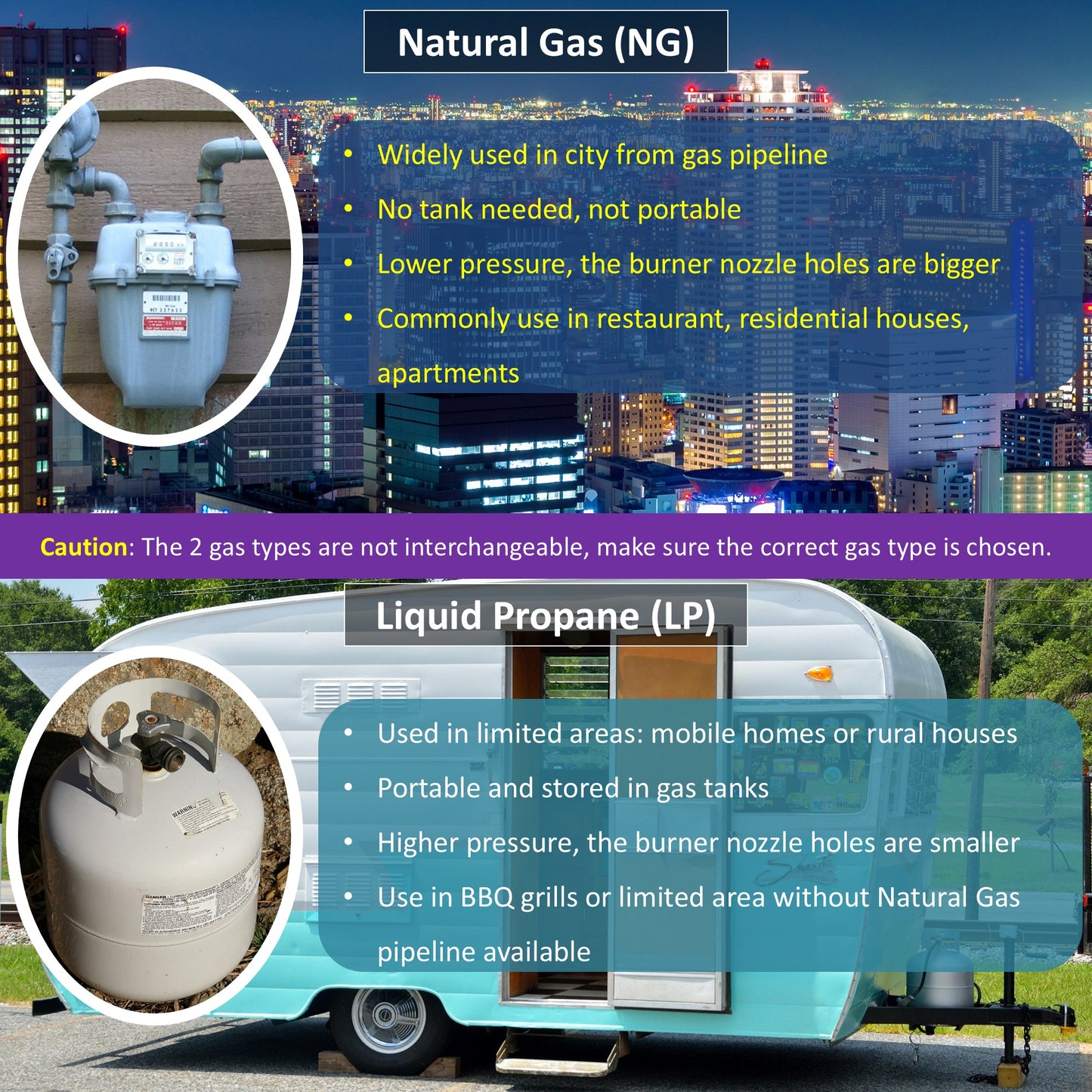

  • GAS TYPE & PRESSURE - Gas Type: Propane Gas (LP). Inlet gas pressure: 1/2 PSI. Outlet pressure range: 5" - 12" Water Column
  • PIPE THREAD SIZE - 1/2" Inlet & 1/2" Outlet FPT GAS PIPE. Make sure you measure the gas pipe or regulator opening as close to 13/16 inches as shown in the picture’s table.
  • CAUTION - This regulator has 13/16" openings for 1/2" gas pipes. The 1/2" gas pipe means interior diameter 1/2" but outside diameter is 13/16", refer to the pictures before buying.
  • MARKING - Model: RV48L, Marking: 1/2 PSIG, Po 5" - 12". Inlet pressure 1/2 PSI. Adjustable outlet pressure 5"-12" Water Column.
  • OPERATE TEMPERATURE - 32°F - 225°F (0°C - 107°C). Do not install the regulator too close to the heating equipment or use in very cold environment. Heat or cold can change the resistance of the spring inside the regulator.

Attention:

  • NOTE: GAS PRESSURE REGULATORS WILL NOT TURN OFF THE FLOW OF GAS.
  • CAUTION: Never connect regulator directly to the propane supply source. Maxitrol regulators require an external regulator (NOT supplied). Install the external regulator between the propane supply source and Maxitrol regulator.
  • Install the regulator properly with gas flowing as indicated by the arrow on the casting.
  • *NOTE - Do not install the regulator too close to the heating equipment or use in very cold environment.

How to find the correct pipe thread size

  • WARNING: The NPT thread size is NOT referring to the size of the thread itself!
  • The plumbing industry standard for the pipe sizes is NOT always as straightforward as measuring the pipe.
  • Measuring the pipe will often mislead you into choosing the wrong pipe size.
  • The "pipe thread size" is measured and based on the inside of the pipe.
  • A lot of people measured the thread / the opening for the thread / outside diameter of the pipe, and thought that was the thread size. It was WRONG.
