Maxitrol RV47L Liquid Propane Gas Pressure Regulator, 1/2" FPT Thread, 13/16" In and Out Opening, 1/2 PSIG In, 6" - 10" WC Out

MaxitrolSKU: 52-1150

Price:
Sale price$32.99
Stock:
In stock

Description

  • GAS TYPE & PRESSURE - Gas Type: Liquid Propane (LP). Inlet gas pressure: 1/2 PSI. Outlet pressure range: 6" - 10" Water Column
  • PIPE THREAD SIZE - 1/2" Inlet & 1/2" Outlet FPT GAS PIPE. Make sure you measure the gas pipe or regulator opening as 13/16 inch.
  • CAUTION - This regulator has 13/16" openings for 1/2" gas pipes. The 1/2" gas pipe means interior diameter 1/2" but outside diameter is 13/16".
  • MARKING - Model: RV47L, Marking: 1/2 PSIG, Po 6" - 10". Inlet pressure 1/2 PSI. Adjustable outlet pressure 6" - 10" Water Column.

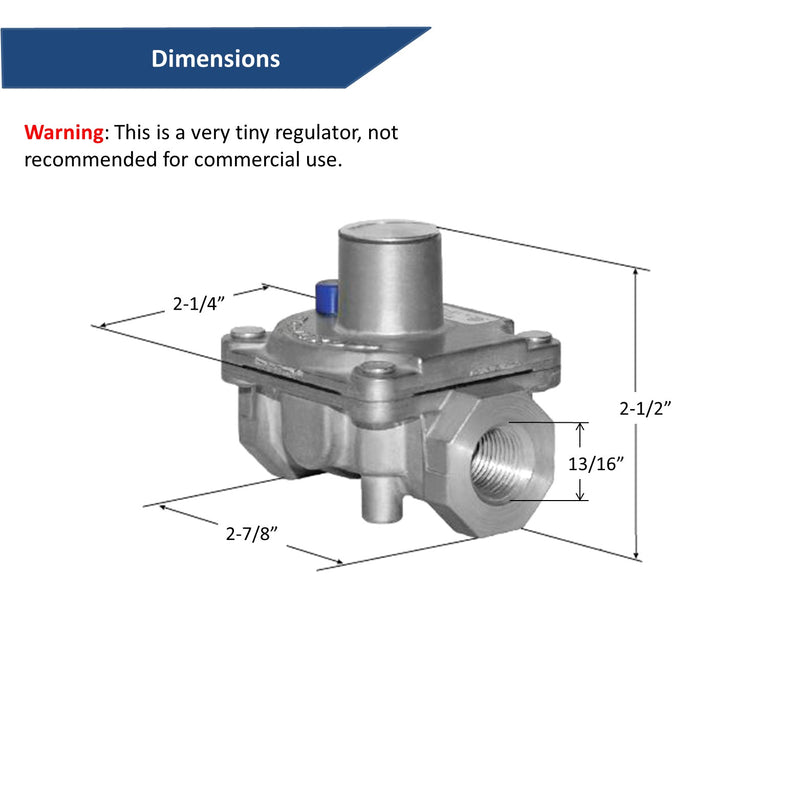

  • OPERATE TEMPERATURE - 32°F - 225°F (0°C - 107°C). Overall Dimension: 2-7/8” W x 2-1/4” D x 2-1/2” H. This is a small size regulator. Refer to pictures for detailed dimensions.
